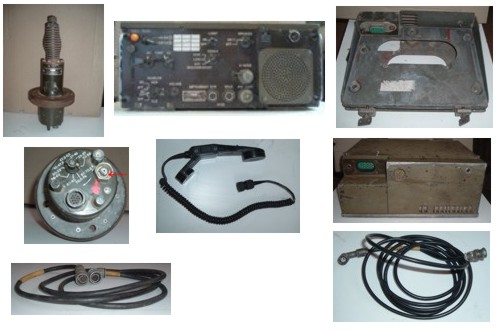

Assorted Cold War radio gear:
See below for specifics:

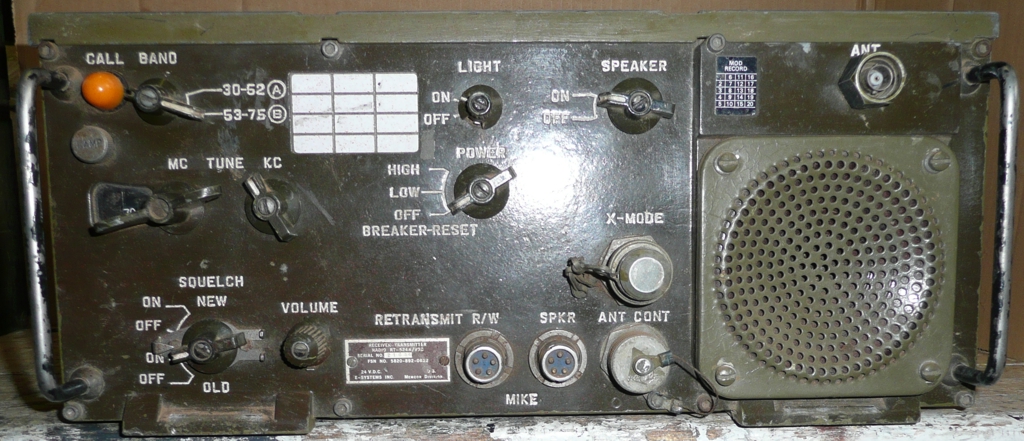

RT-524A Radio Receiver/Transmitter.
Radio is in good used condition.
It appears to have ALL modules insitu.
When supplied with 24VDC, (and hooked up to an ATU and
antenna elements) radio powers up and receives nicely.
Radio appears to be able to transmit, but I have not
tested this as I do not have a dummy load or SWR meter.
|
Download the big pics by clicking on the small pics...
|
Actual radio for sale
|
Download the big pics by clicking on the small pics...
|

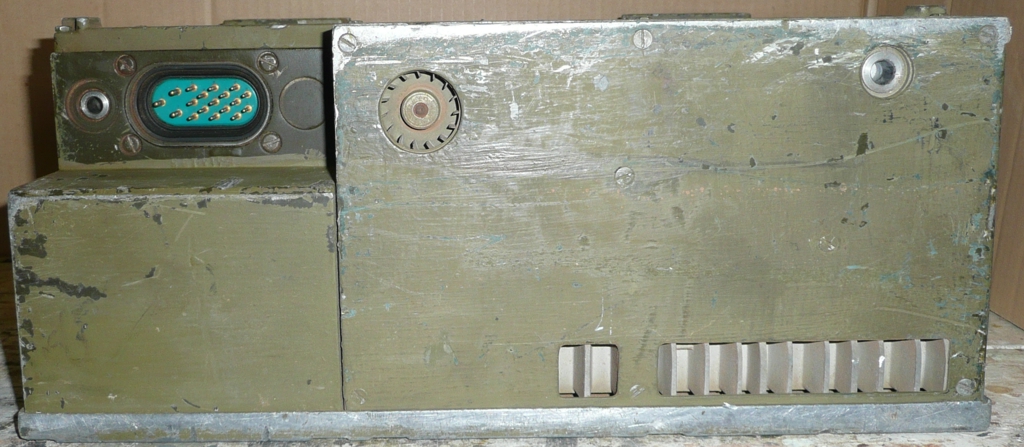

Rear view (radio is shown upside down).

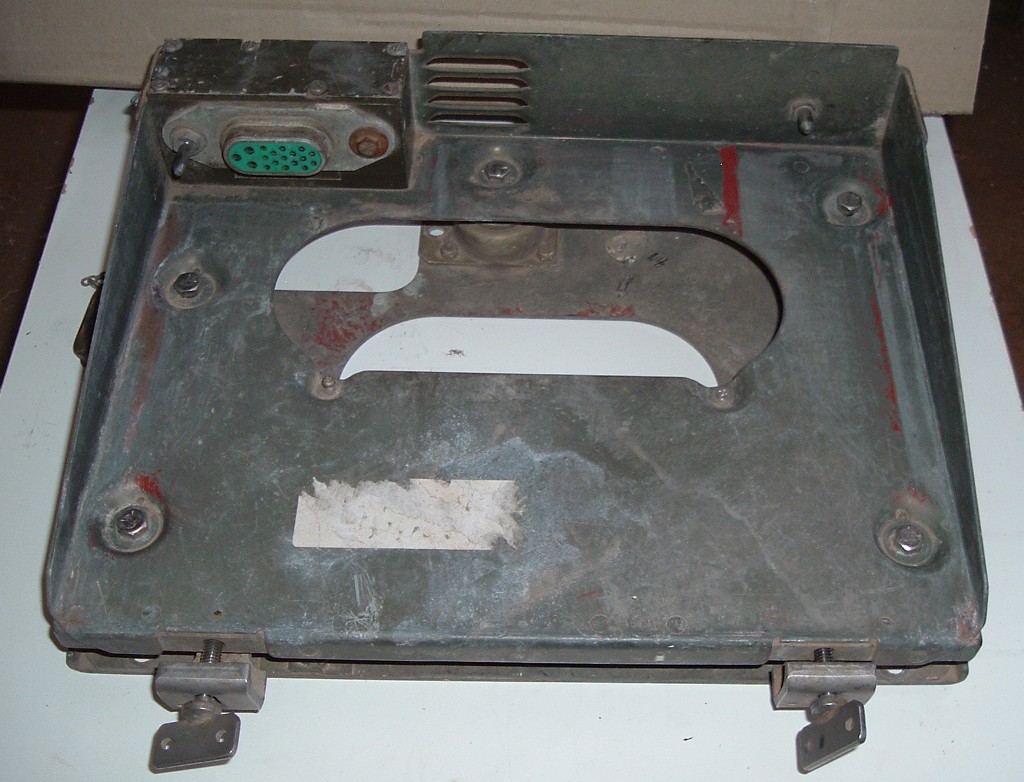

MT-1029 Mount (to suit RT-524).
Mount has been powered up whilst attached to the above
RT-524 and works fine.
Mount pictured is not the exact one that is for sale. One for
sale is similar condition if not better.
|
Download the big pics by clicking on the small pics...
|

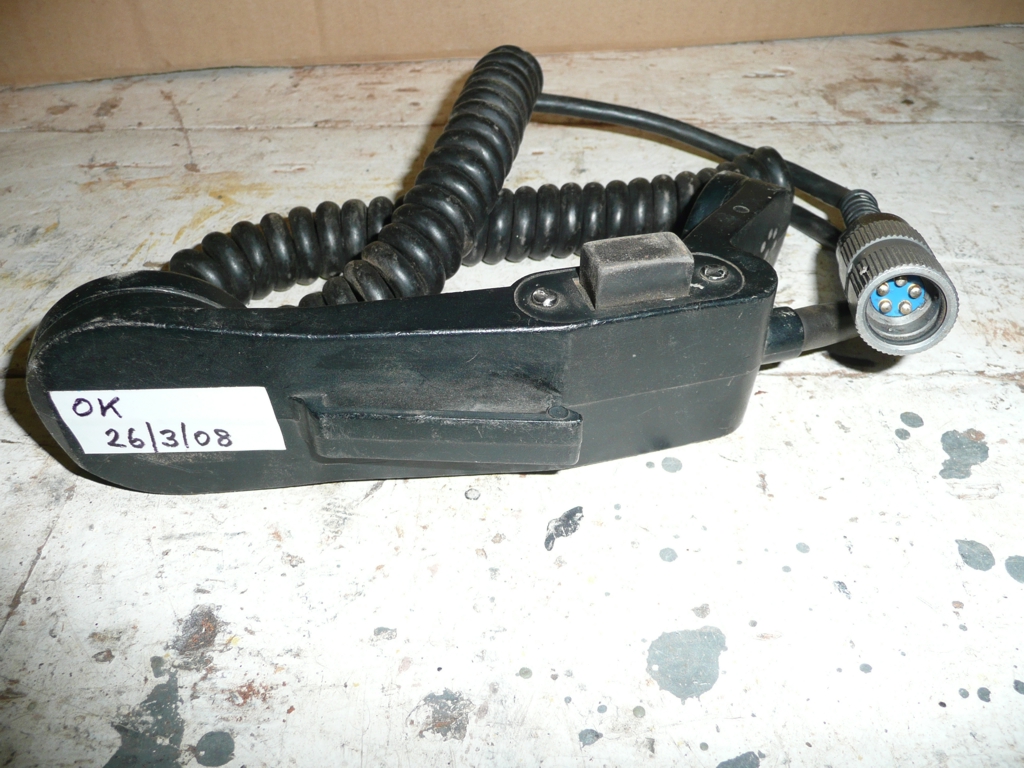

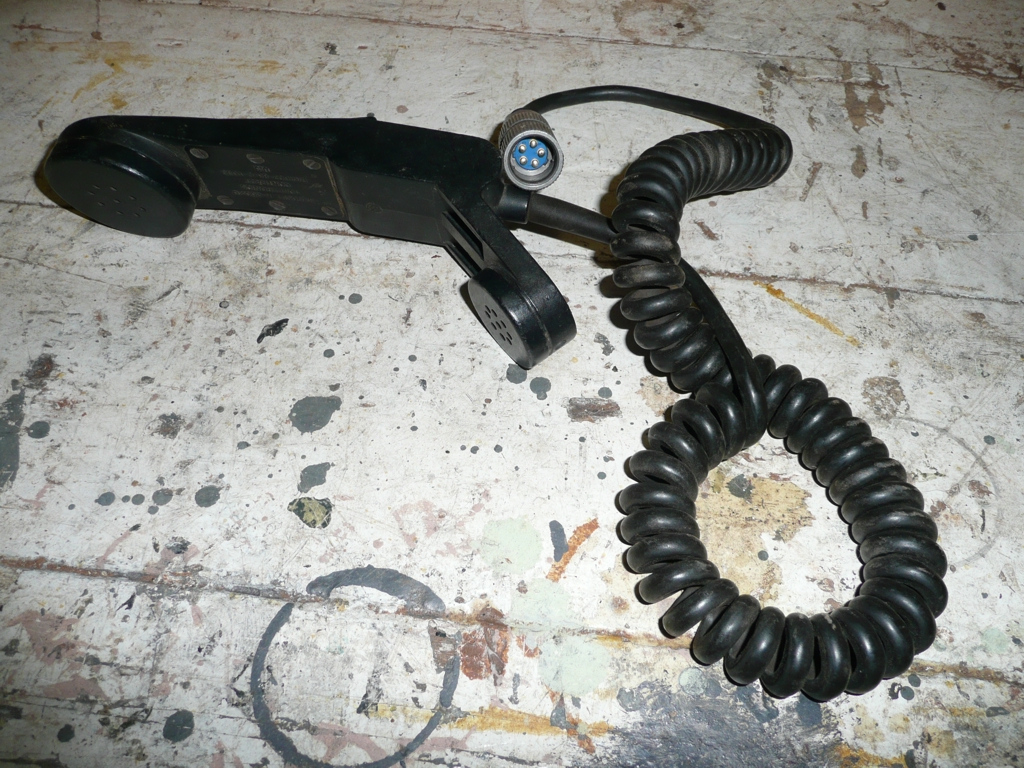

H-250 Handset (Microphone, Earphone and PTT).
Handset has been tested on RT-524 receives well, appears
to be able to transmit - not tested.
|
Download the big pics by clicking on the small pics...
|
|
Download the big pics by clicking on the small pics...
|

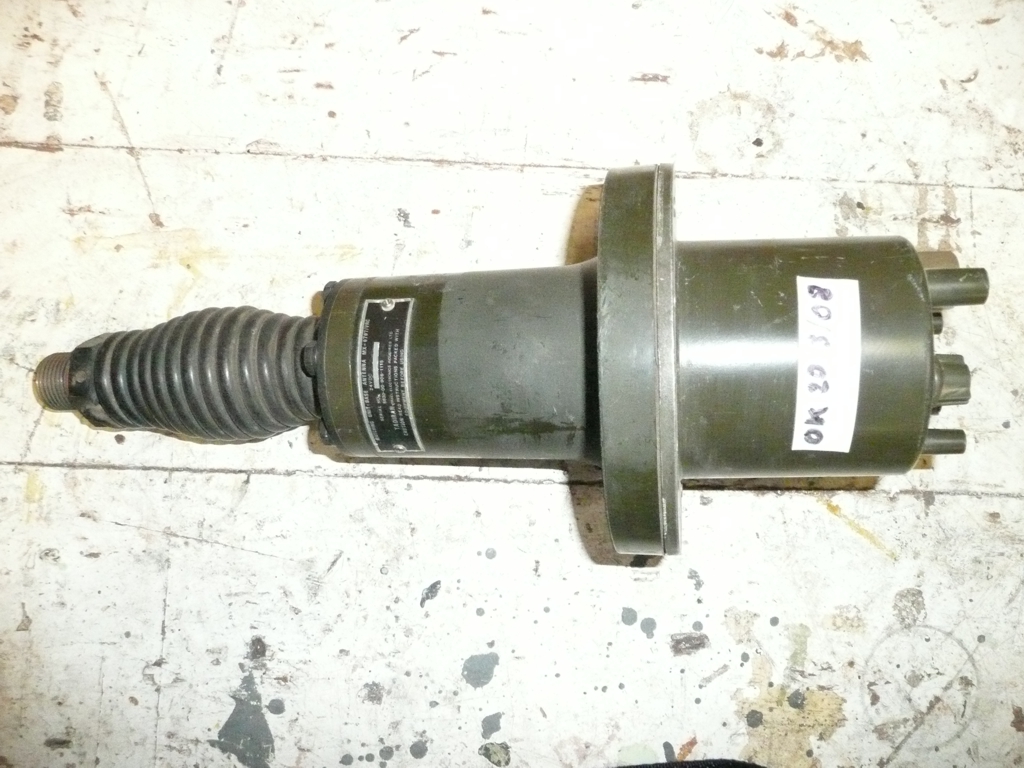

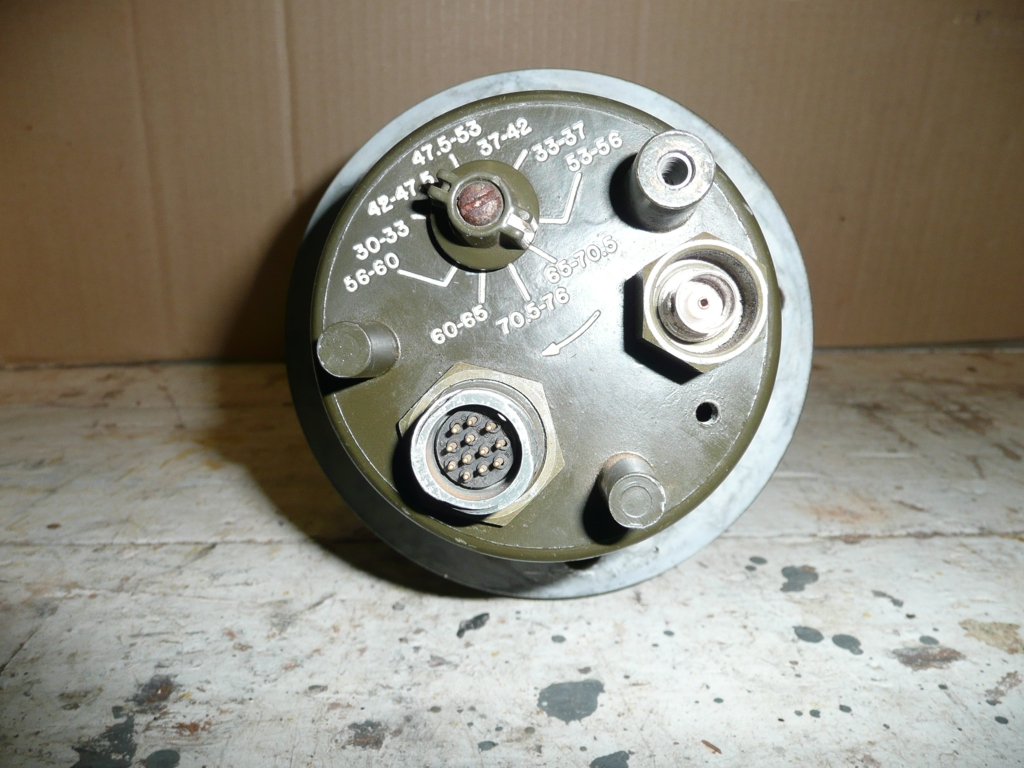

MX-6707 Antenna Tuning Unit.
Unit tested with above RT-524 and appears to work.
|
Download the big pics by clicking on the small pics...
|
|
Download the big pics by clicking on the small pics...
|

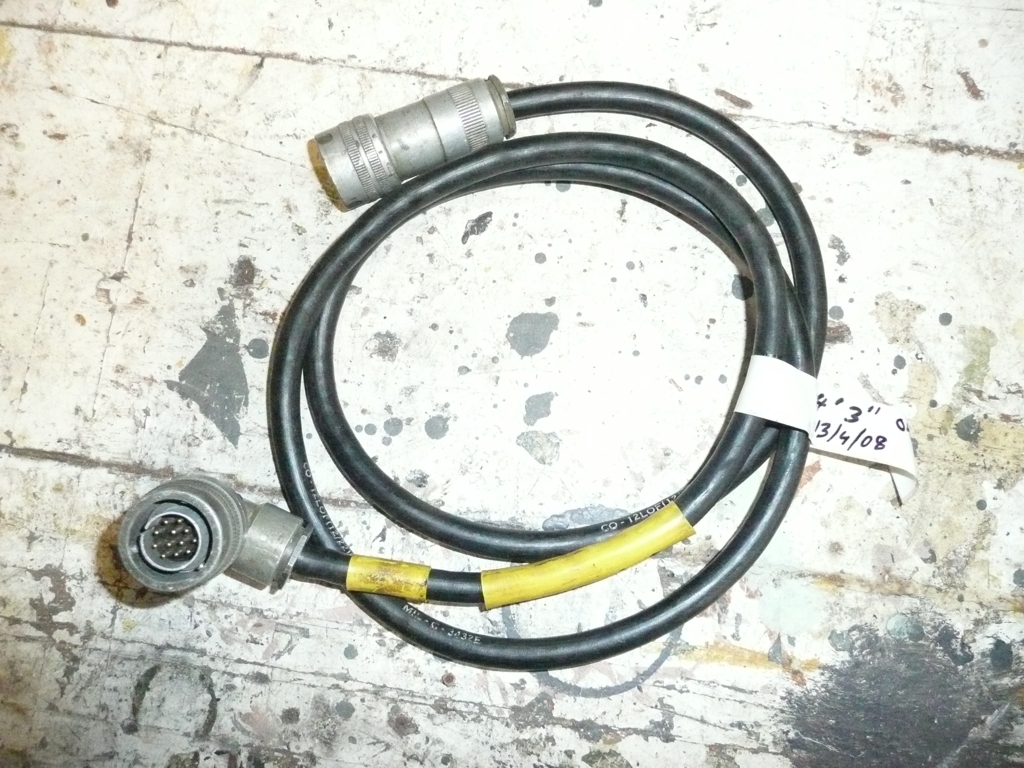

CX-4722A Radio to Antenna Tuning Unit indexing cable.
Cable has been tested and works.
|
Download the big pics by clicking on the small pics...
|
CG-1773B Radio to Antenna Tuning Unit RF cable.
Cable has been tested and works.
Cable has splits in outer sheath, which means armouring is
exposed at locations shown.
This does not affect operation of
cable, but should have some insulation tape applied over splits.
Right click on picture to view enlarged version.
|
Download the big pics by clicking on the small pics...
|

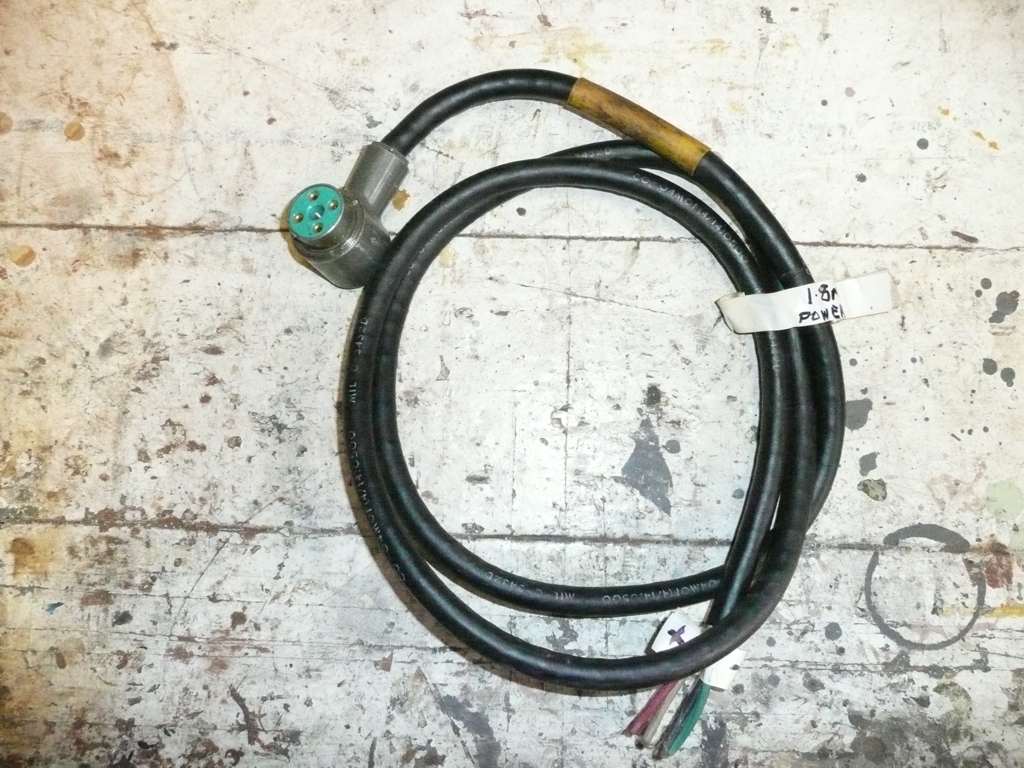

CX-4720 Power Cable (to suit MT-1029 mount).
Cable has been tested and works.
|
Download the big pics by clicking on the small pics...
|
I have marked the leads "+" and "-". Buyer can either install
terminals and connect direct to batteries or connect into a junction
box or splice into a power cable. An inline fuse or breaker would
be a good idea.
NOTE:The only thing missing from the above for a functioning radio
installation is the antenna elements (1x upper and 1 x lower).
AU$1,500 for above listed items.
I may consider
selling items seperately, but would rather sell as a complete set. Will
consider swap.
