"Heinrich the Hun"
a "D" Model Panther Sd. Kfz 171 in 1/3 scale.

   (Ver 1)



10597

Download the big pics by clicking on the small pics...

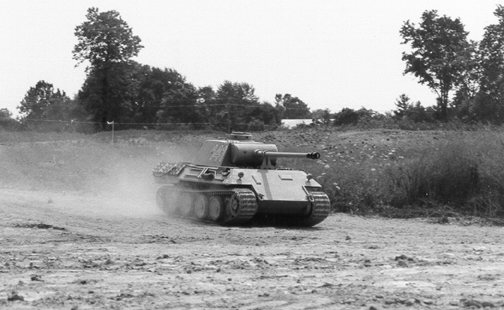

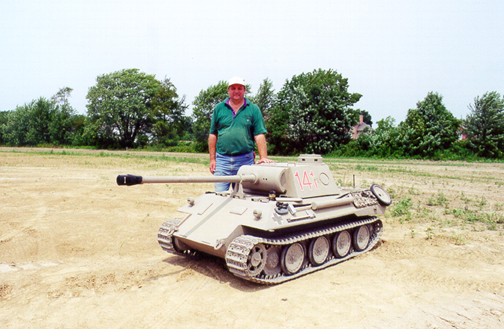

Heinrich is a radio controlled scratchbuilt, fully operational, steel, aluminum, pvc and plywood 1/3 scale reproduction of the German Mark V, 'D' Model Panther Tank. Heinrich is powered by an 11 1/2 horsepower gasoline engine that drives a hydraulic double pump that powers (2) hydraulic motors through (2) proportional hydraulic valves. The hydraulic system is controlled by an electronic processing receiving unit that makes Heinrich go forward, reverse, left and right. It also controls his speed, which can be up to (4) miles per hour. An industrial (10) channel radio transmits signals to Heinrich. Four channels are used to operate Heinrich's drive system. Two channels are used to raise and lower his gun. Two channels are used to make Heinrich's turret turn left and right.

10598

Download the big pics by clicking on the small pics...

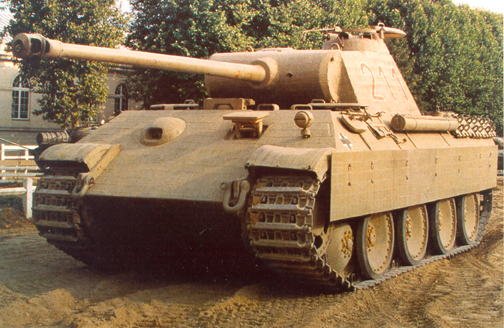

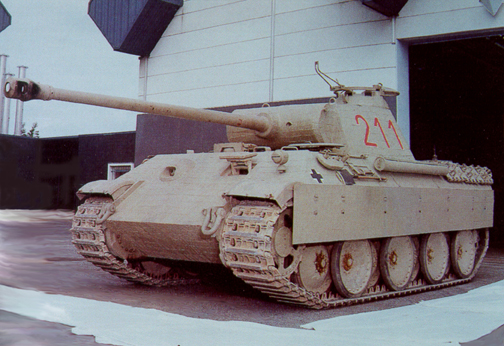

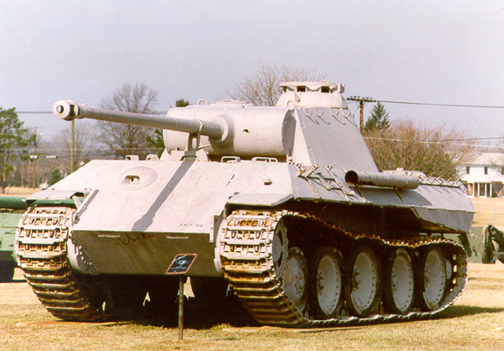

Heinrich was upscaled from a 1/35 scale model and was also developed from engineering drawings and photos taken of the real vehicle in the Ordnance Museum located at the U.S. Army proving grounds in Aberdeen, Maryland. Heinrich's dimensions were developed and drawn using computer aided drafting and are retained in a computer aided design -CAD- model.

10599

Download the big pics by clicking on the small pics...



10600

Download the big pics by clicking on the small pics...

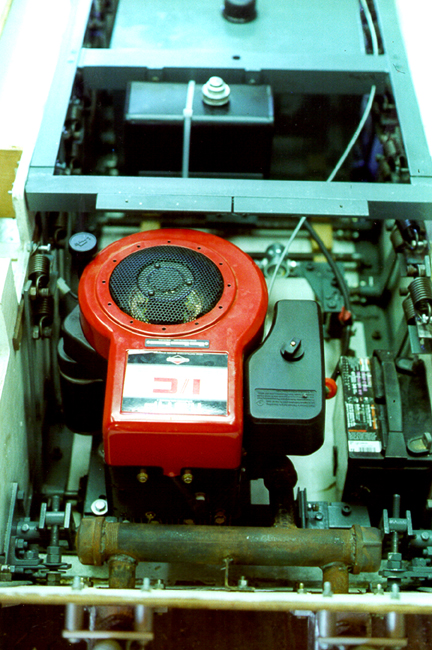

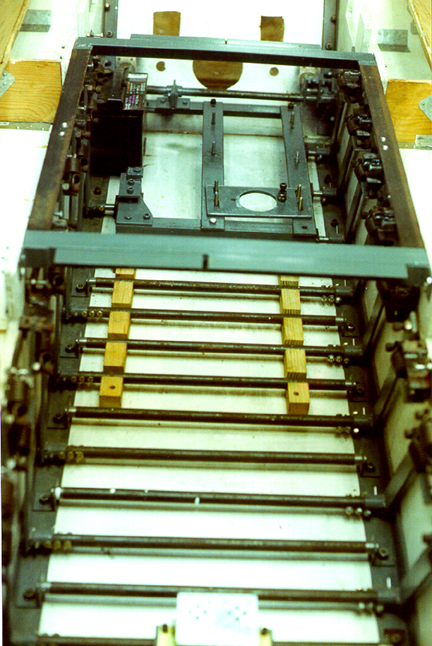

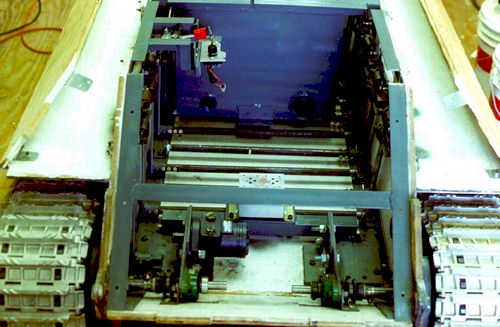

Heinrich's body structure is made from reinforced plywood that represents the actual plate thickness of the real vehicle. His suspension details and components, gun yoke/mantel, engine deck and drive system are housed with structural steel. His gun mantel is made from PVC (poly-vinyl-chloride) and his trunnion is made from laminated wood and machined to represent the actual casting. His 75mm high velocity gun barrel and muzzle brake are made and from machined PVC. His 7.92mm mantel machine gun is made and machined from round aluminum.

10601

Download the big pics by clicking on the small pics...



10602

Download the big pics by clicking on the small pics...



10603

Download the big pics by clicking on the small pics...

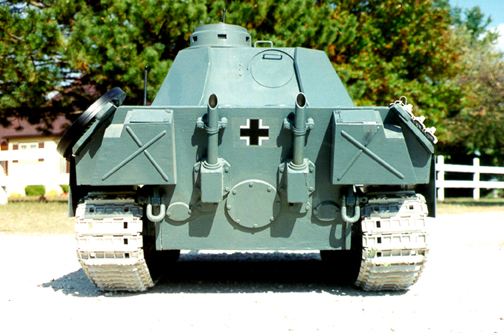

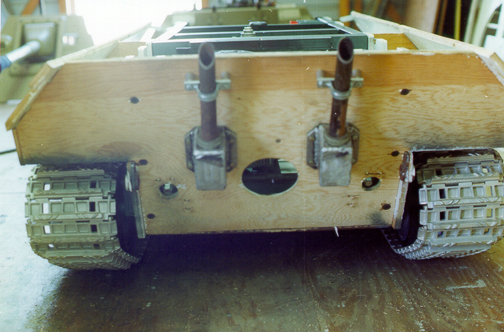

Heinrich's exhaust manifold and pipes were made from steel pipe and welded together. His exhaust pipe cap covers are made from plate aluminum welded together and bolted in place.

10604

Download the big pics by clicking on the small pics...

  Heinrich's inner and outer drive sprockets, sprocket spacer, road wheel axles and suspension details and components are made and machined from steel. His suspension axles and struts are machined from steel and heat treated.

10605

Download the big pics by clicking on the small pics...





10606

Download the big pics by clicking on the small pics...

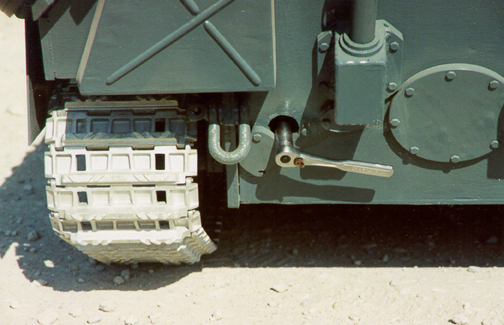

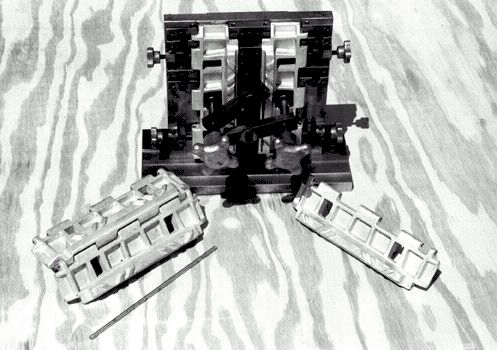

Heinrich's tracks (87) per side and spare tracks attached to his side glacial are made and machined from cast aluminum and held together with steel pins and retaining rings.

10607

Download the big pics by clicking on the small pics...

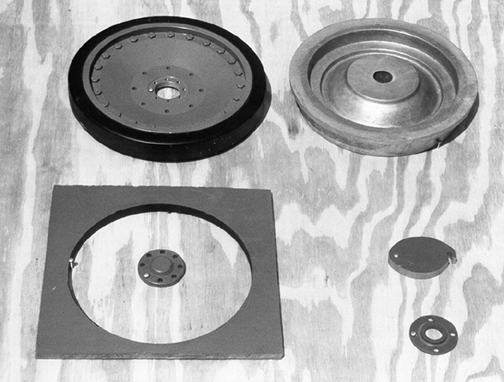

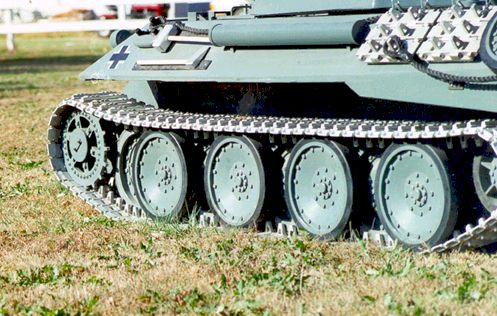

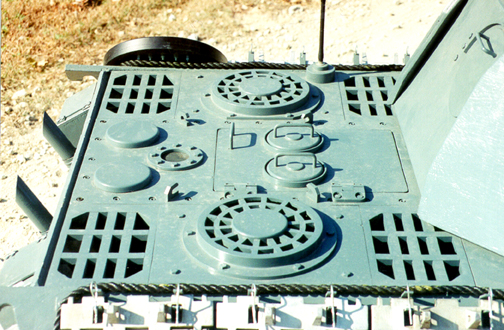

  His road wheels, 8 (A)s and 16 (B)s are cast and machined from aluminum. His road, trailing and intermediate tires are made and machined from laminated plate PVC and spray painted black. The doughnut holes and remaining material from his road tires were machined into his structural details - hatches, ports, axle wheel caps, ventilators, engine gratings, lift hooks and fan covers.

10608

Download the big pics by clicking on the small pics...



10609

Download the big pics by clicking on the small pics...

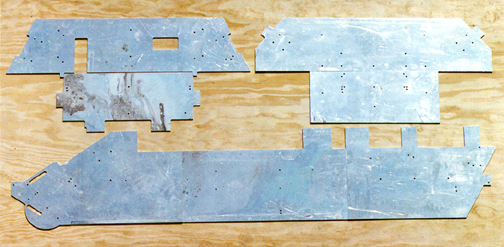

  Heinrich's sides, floor, rear bulkhead, pannier floors, front and rear glacial plates are routed using router tools designed to rout each detail from different plywood thicknesses to simulate the real vehicle. Heinrich's turret details were developed and made from dimensional drawings and held in place by adhesives and steel fasteners.

10610

Download the big pics by clicking on the small pics...



10611

Download the big pics by clicking on the small pics...

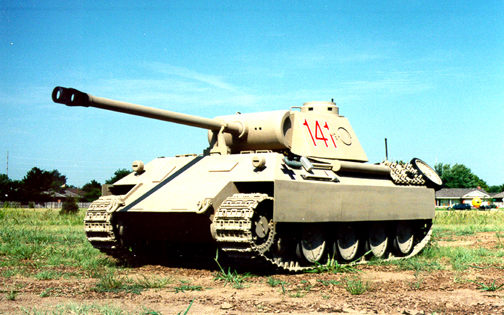

Heinrich's commanders cupola is also machined from excess PVC and uses (6) pieces of plate machined plexiglass installed as viewing ports. Heinrich weighs approximately 1,480 pounds. Heinrich's color scheme is Orca (sand) Heinrich is painted with conventional markings and was the 1st tank in the 4th platoon of the 1st company serving with XLVIII Panzer Corps and assigned to "Grossdeutschland" (Greater Germany) the elite Panzer Grenadier Division, number (141) . His theme - entry into service with Panzer Abteilung 51, in early summer of 1943, in south-central Russia in preparation for The Battle of KursK, without "zimmerit" antimagnetic coating.

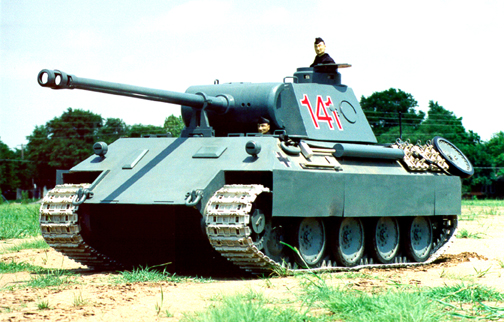

10612

Download the big pics by clicking on the small pics...



10613

Download the big pics by clicking on the small pics...



10614

Download the big pics by clicking on the small pics...



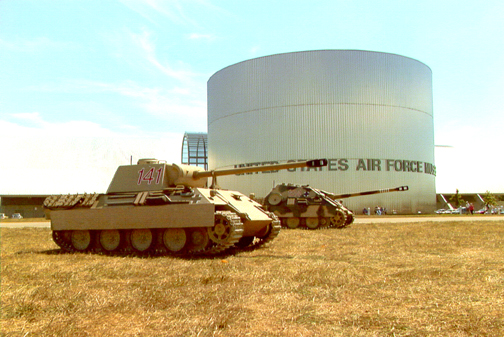

10615

Download the big pics by clicking on the small pics...



10616

Download the big pics by clicking on the small pics...



My thanks to David.
