The McMahon Collection (Ver 3)


10329 pic

Download the big pics by clicking on the small pics...

About the author

My interest in Matilda tanks started when my father bought a Matilda II fitted with a cable blade in the early 70ís for dam sinking and tree felling on our property.

Since than my collection of military vehicles has grown and many projects have been undertaken, I now own 4 Matildas in various forms, 2 Bren Carriers, 1 Centurian and some blitz trucks.

Some of the gadgets from the collection

Matilda II 400030

10330 pic

Download the big pics by clicking on the small pics...


10331 pic

Download the big pics by clicking on the small pics...


10332 pic

Download the big pics by clicking on the small pics...

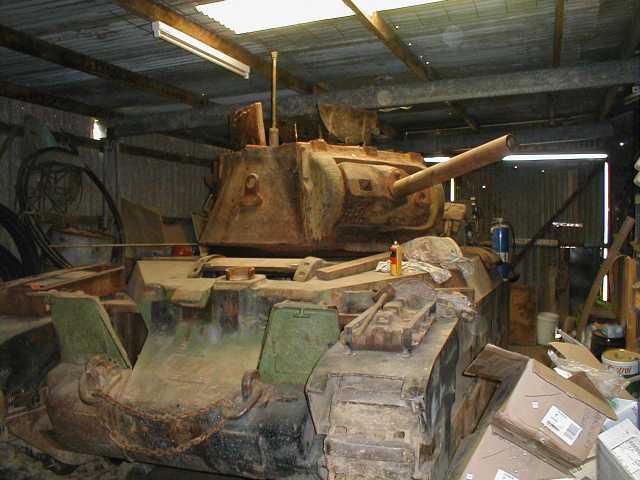

Built by B.P and Co Ltd

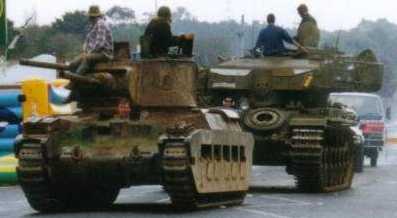

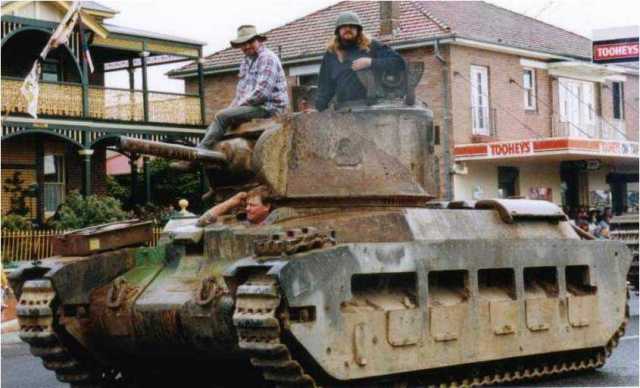

This is my favourite machine and is still under restoration, Originally fitted with AEC engines (A183 & A184) and latter changed to E148 / E149 Leyland motors this machine is very reliable and has made the trip to town and back for several street parades.
This vehicle was made in 1939 and has the features of the early models including Louvres in the front sponsons (covered by the crew to control dust), Track return rollers, (now converted to return skids) oil coolers over the fuel tanks, and Lift up suspension covers etc.
The drive train was fully rebuilt in the early 90ís following a nasty incident, which resulted in one motor seizing solid after loosing all the coolant.

Matilda II Mk4 Dozer 46101

10333 pic

Download the big pics by clicking on the small pics...

Built by Fowlers
This machine was bought in 1999 and is in a sad condition but will be fully rebuilt. The vehicle is of very early design and has no emergency escape hatch under the driverís seat.

The hydraulic blade controls are complete and still in the original position however the rear of the Hull is looking like a second hand lawn mower, I do however have extensive hull plates spare off the hull of ďASPĒ and part of another hull.

This Tank as well as the Hull of Casanova in the background are now in the shed waiting for the rebuild.

Matilda III CS 29920 Adonis

Much to my mothers delight (not) this Hull was obtained after a trip to help an old mate with his fine example of a late model Matilda, Henry and I found the hull and before I knew what I was doing it was mine.

I guess this is better than having it go for scrap!

The hull is in very bad condition but the gearbox and some gadgets are ok. The tracks were seized and very stiff however I have freed them up and you can now move the hull around.

Centurian 169 129 Armageddon

10334 pic

Download the big pics by clicking on the small pics...


10335 pic

Download the big pics by clicking on the small pics...


10750 pic

Download the big pics by clicking on the small pics...


The next 5 photos are turret interior. The first two are taken from the rear of the turret, behind the gun shield looking forward. The breech is the green area at the bottom of the photo.

10755 pic

Download the big pics by clicking on the small pics...


10754 pic

Download the big pics by clicking on the small pics...


This is the loader's view of the gunner's position.

10751 pic

Download the big pics by clicking on the small pics...

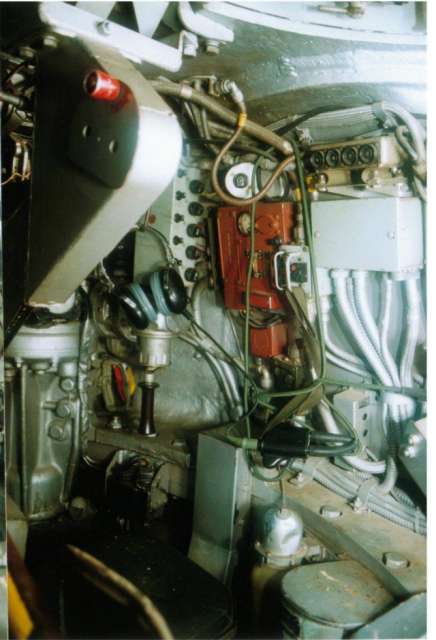

The gunner's postion. The large clock like device is gradauted in "mils" and is used when an external observer is correcting the tank's fire (similar to the way artillery works, where the gun is located in such a way that the crew cannot see the target).

10752 pic

Download the big pics by clicking on the small pics...


Looking from the loader's position towards the commander's position. He sits directly behind the gunner, who is unable to leave his position until the commander first leaves.

10753 pic

Download the big pics by clicking on the small pics...


10756 pic

Download the big pics by clicking on the small pics...


10757 pic

Download the big pics by clicking on the small pics...


10336 pic

Download the big pics by clicking on the small pics...


Something you rarely see, a Centurion at speed!

10758 pic

Download the big pics by clicking on the small pics...

This tank was built in 1951 and was used by the 11th BA Division until coming to Australia. Bought by me a few years ago it was running but had been neglected and the engine was like a second hand lawn mower, smoke; youíve never seen so much smoke and in 99 we decided to give the old girl a complete overhaul.

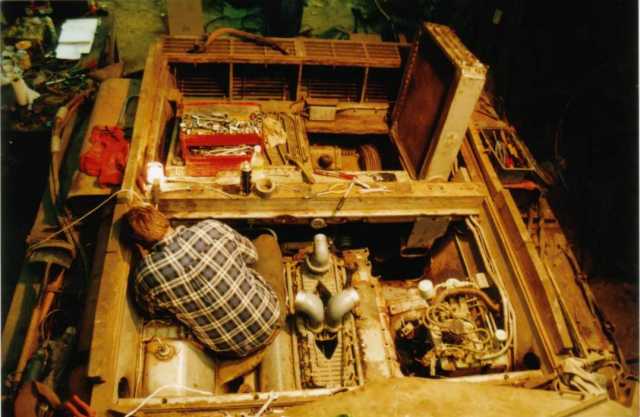

During the rebuild we replaced the engine, Fuel system, Clutch, Rotary coupling in the turret, and rebuilt and inspected the Aux generator and the rest of the drive system.
This old girl now runs like a new car and has also been to town for the street parade.

Comment from Doug: I can see how much hard work has gone into his vehicles and am impressed, an engine change on a Centurion is regarded as a nightmare job by most collectors.

The Carriers

We bought hull number 308 SAR at a clearing sale at Bathurst for ten dollars in the late 70ís and within a few days Dad had the 21 stud ford side valve motor running like new. This carrier had been cut down; however, it provided years of fun on and around the farm.

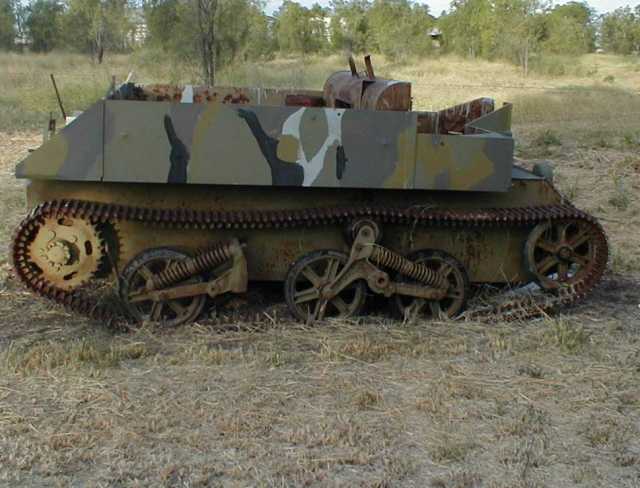

This year I found a hull in central Queensland and took it home thinking I could use it for something.

10337 pic

Download the big pics by clicking on the small pics...


10338 pic

Download the big pics by clicking on the small pics...

The Hull had some extensive blast damage to the floor in the gunnerís position and also in the engine compartment. In April this year we bit the bullet and decided to make two good examples out of the three.

10340 pic

Download the big pics by clicking on the small pics...

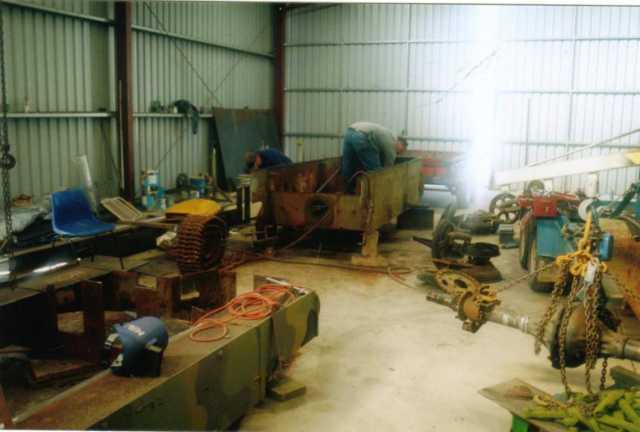

At my brothers shed we removed the top armour to use on carrier # 308 and all the running gear to use on another SAR hull # 2118 that I obtained from the Forbes area.

10346 pic

Download the big pics by clicking on the small pics...


10341 pic

Download the big pics by clicking on the small pics...


10342 pic

Download the big pics by clicking on the small pics...

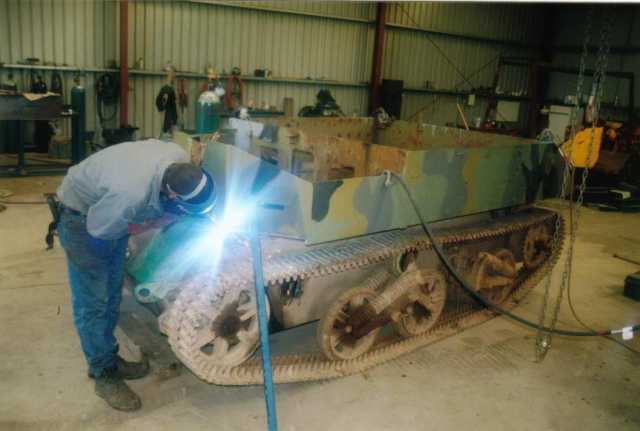

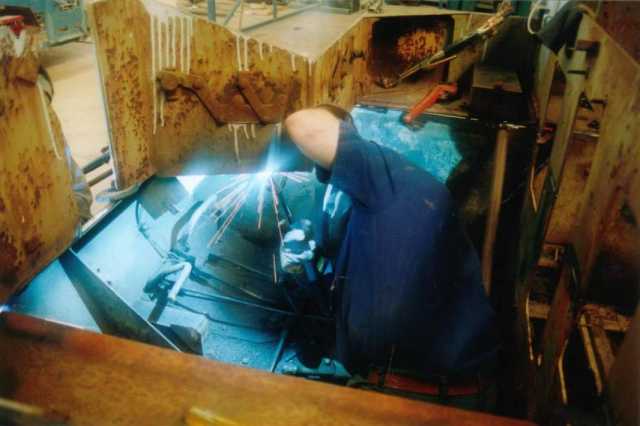

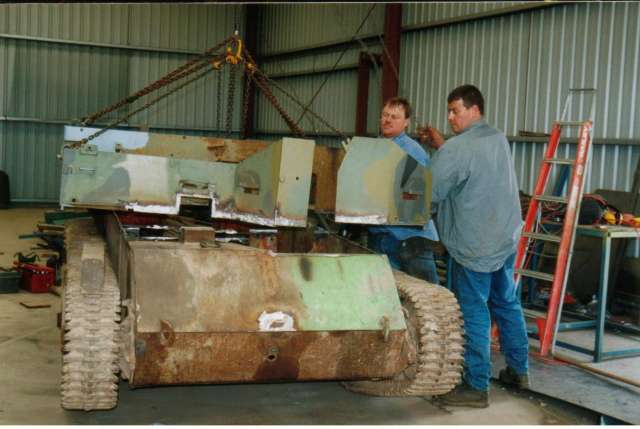

These two photos show my brother Darren and mate Robbie welding the top armour back on to hull 308, In the background you can see the other Hull waiting its turn.

As you can see there is plenty to do but I am lucky to have plenty of spares and lots of friend and family up to the task so no matter how bad it seems it always can be rebuilt.

Many thanks to Mathew for an interesting article.
