The Littlefield Panther.
   (Ver 1)



The pictures in this article are courtesy of John Moores of "Windup Film Works" of Canada and show the progress of the Littlefield Collection's (California) Panther as at May 2004. All pictures are copyright and are used on this site with the permission of John Moores and Jacques Littlefield.

======



11313

Download the big pics by clicking on the small pics...

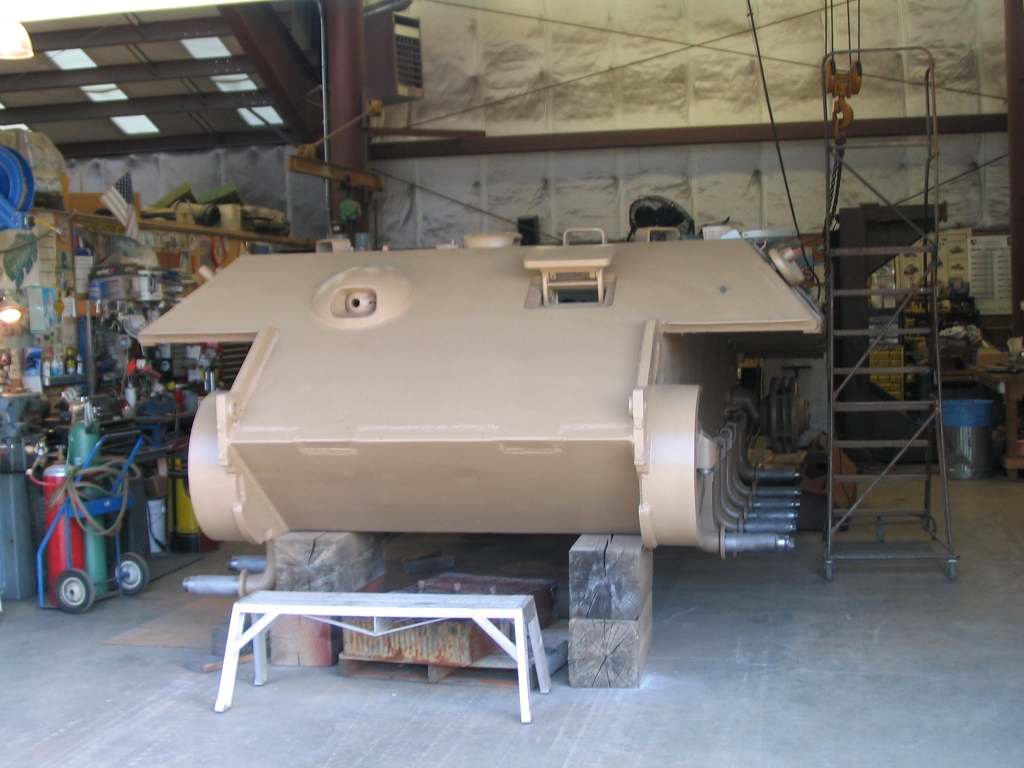

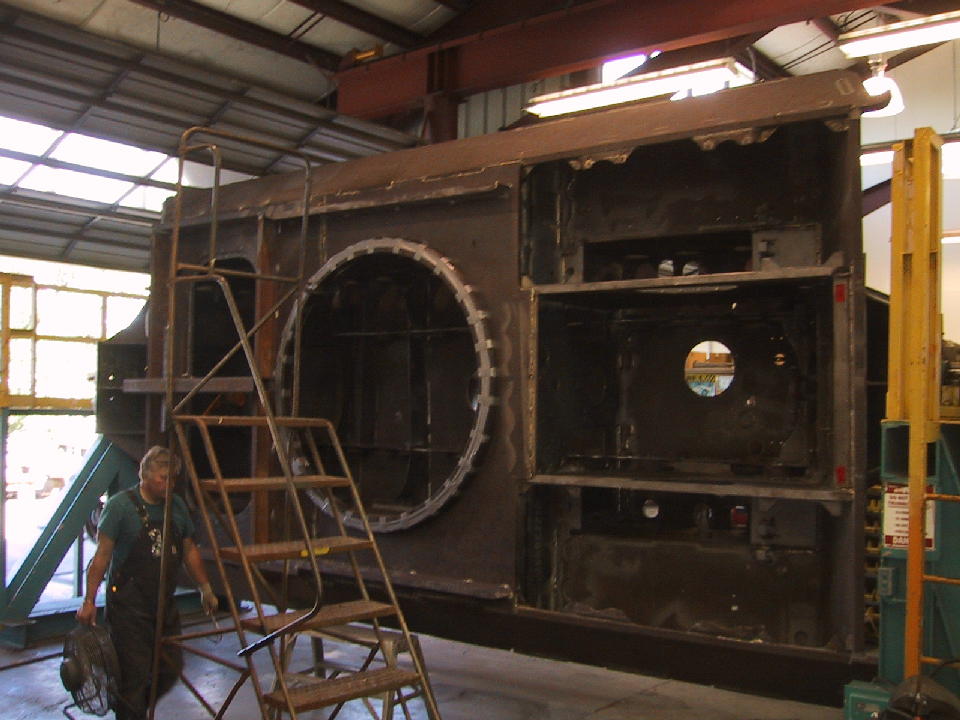

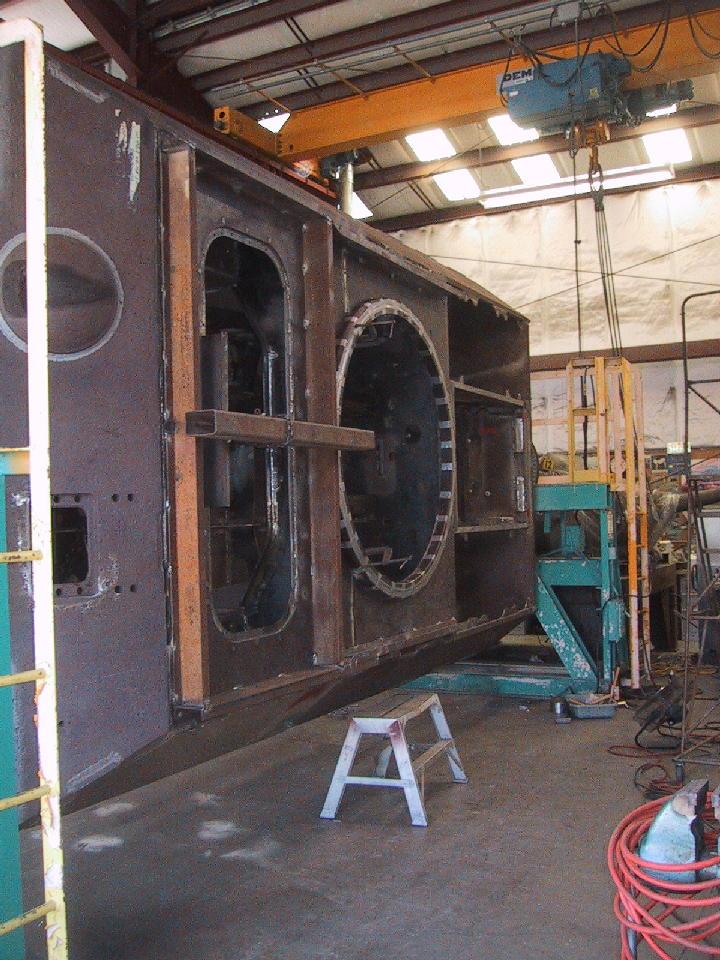

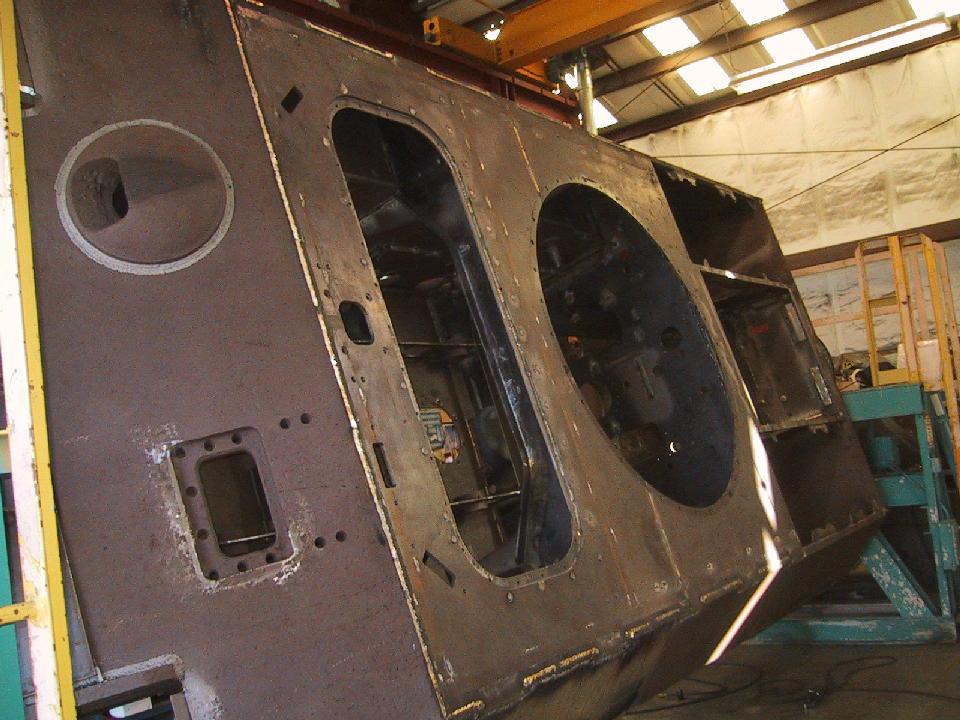

A very clean and neat hull.




11314

Download the big pics by clicking on the small pics...


Note the very substantial piece of curved armour to protect the final drive.




11315

Download the big pics by clicking on the small pics...

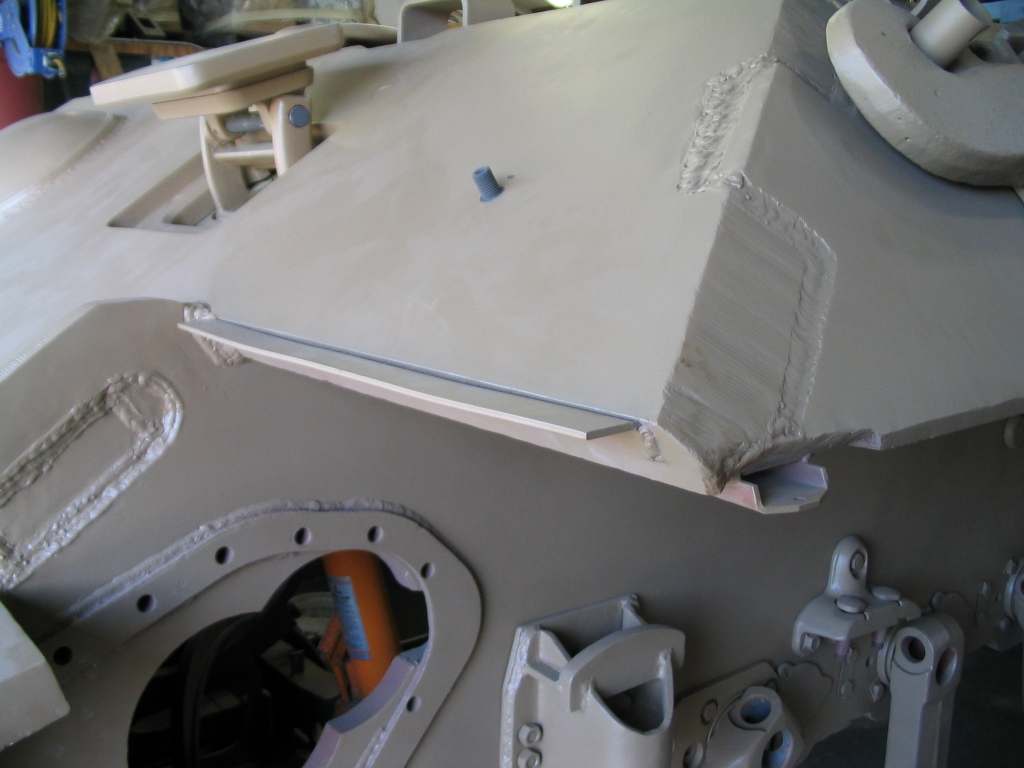

A close up of that unique jointing system used in heavy German AFVs. Note the crudity of the weld finish.




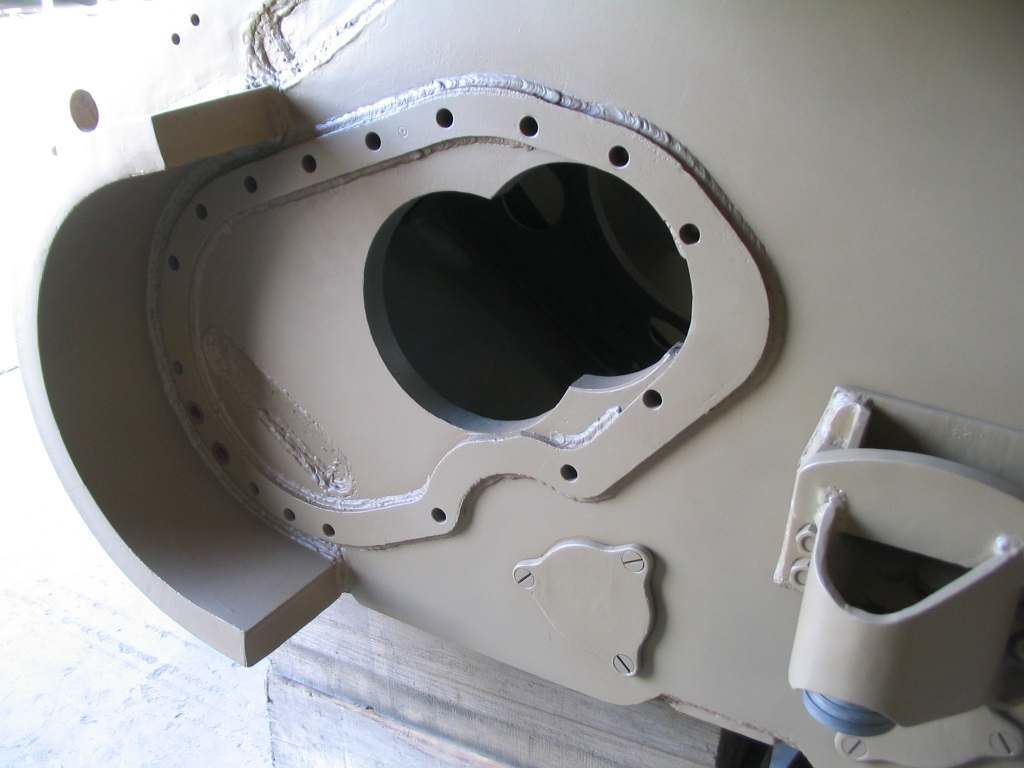

11316

Download the big pics by clicking on the small pics...





11317

Download the big pics by clicking on the small pics...


Suspension arms, they are sitting at odd angles as the torsion bars have yet to be installed.




11318

Download the big pics by clicking on the small pics...

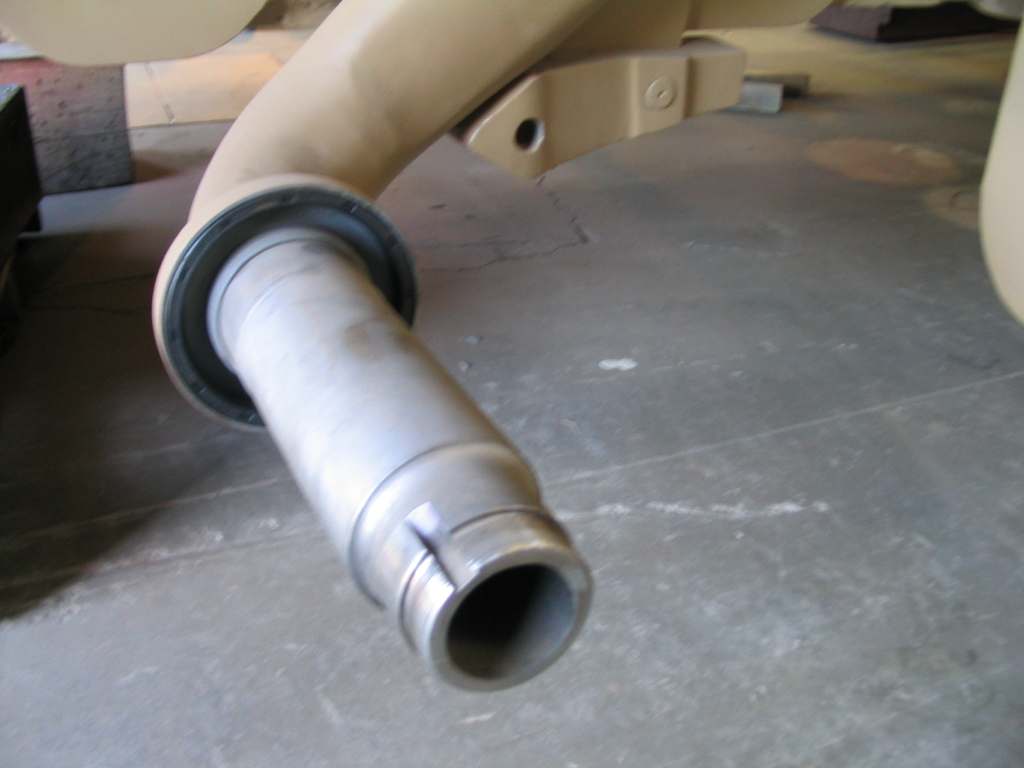

Note that the arms face forward (leading) rather than trailing as you would expect. It is all to do with wheel spacing and fitting the torsion bars into the available spacein the hull.




11319

Download the big pics by clicking on the small pics...


LHS running gear view.




11320

Download the big pics by clicking on the small pics...

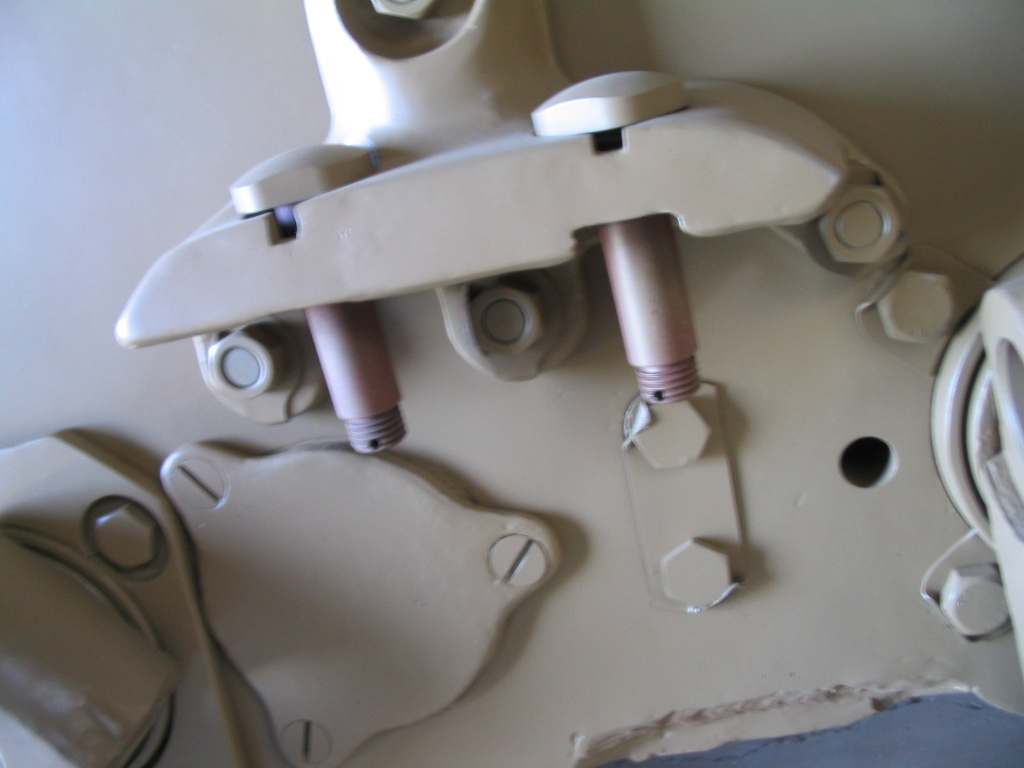

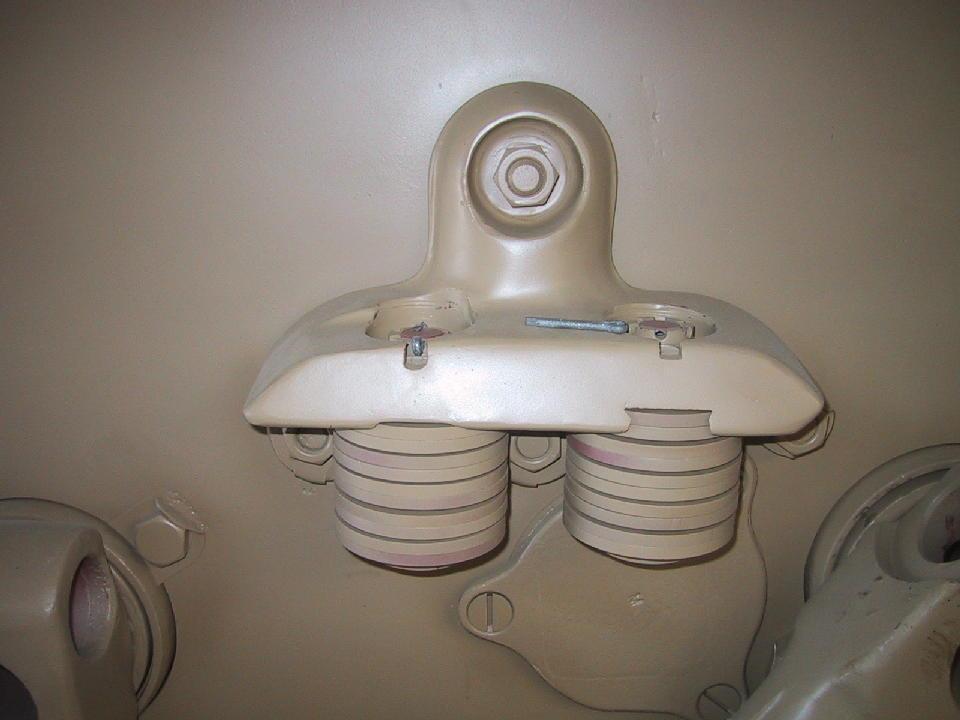

I think this is a suspension arm bump stop mount.




11321

Download the big pics by clicking on the small pics...

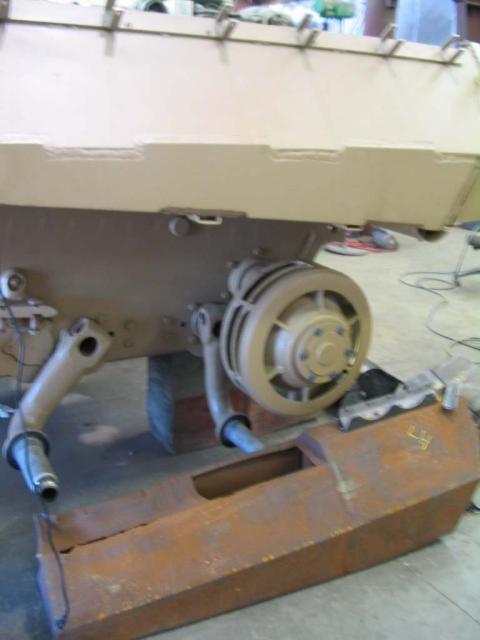

A blurry shot of the LHS rear and an unidentified tank.




11322

Download the big pics by clicking on the small pics...

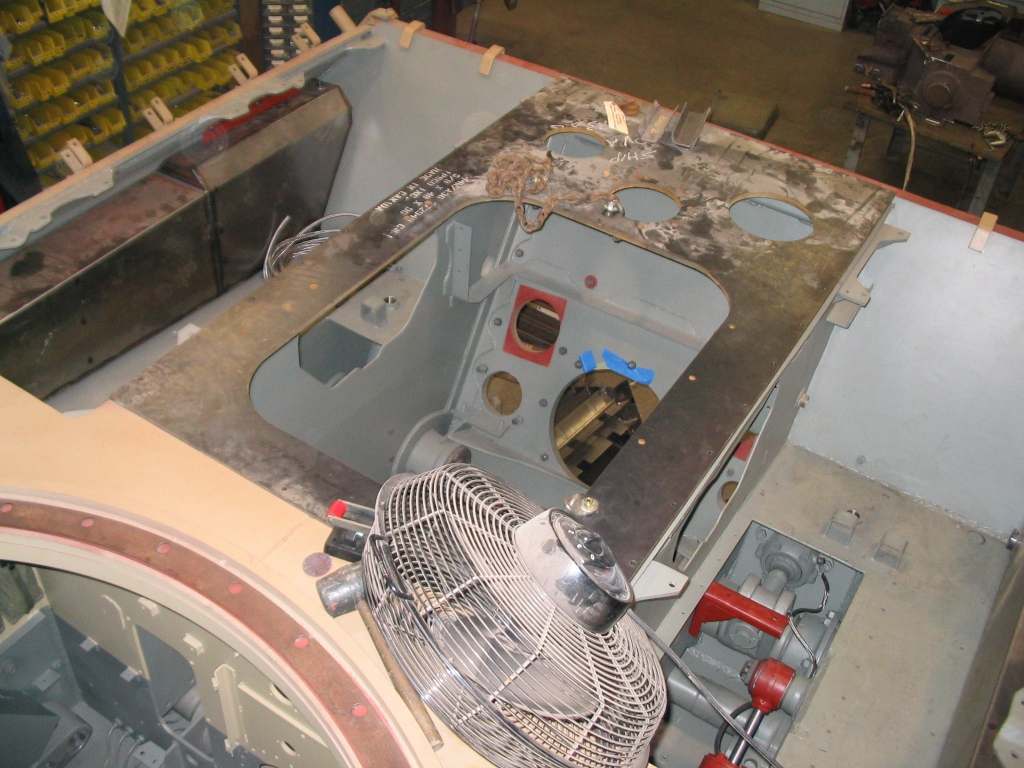

A good view of the rear hull interior.




11323

Download the big pics by clicking on the small pics...

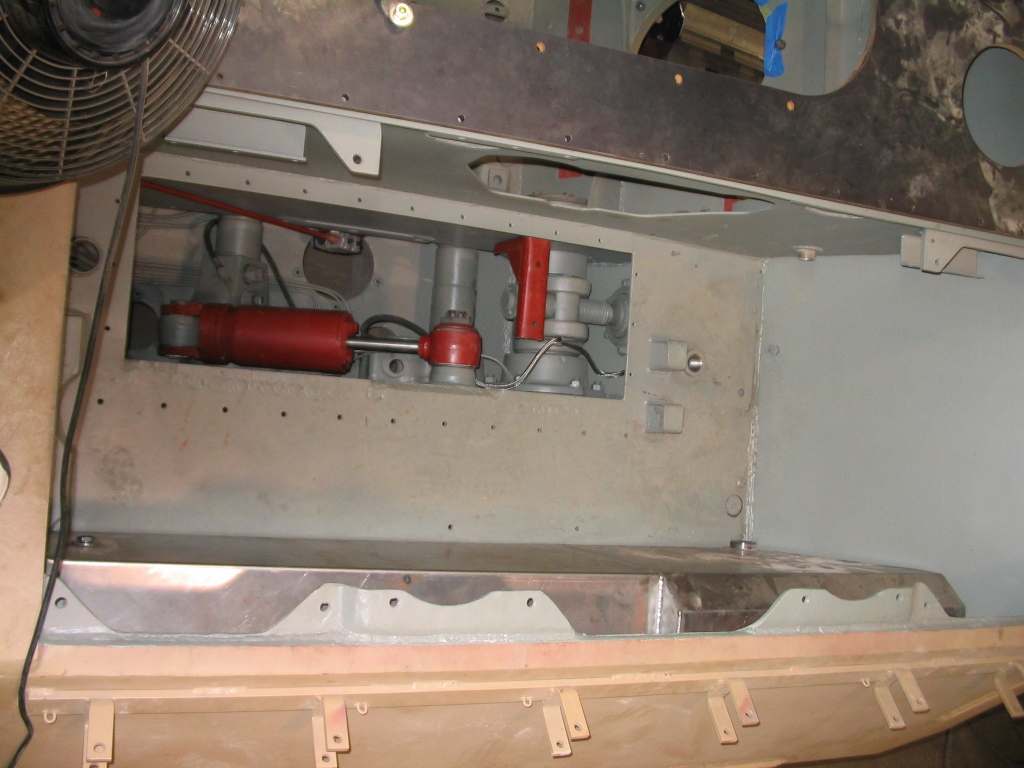

LHS rear bay - radiators, fans, fuel and oil tanks live in here. A very nice stainless steel fuel tank appears to have been made to fit in here. I doubt the original was stainless, but can well understand why the repro is.




11324

Download the big pics by clicking on the small pics...

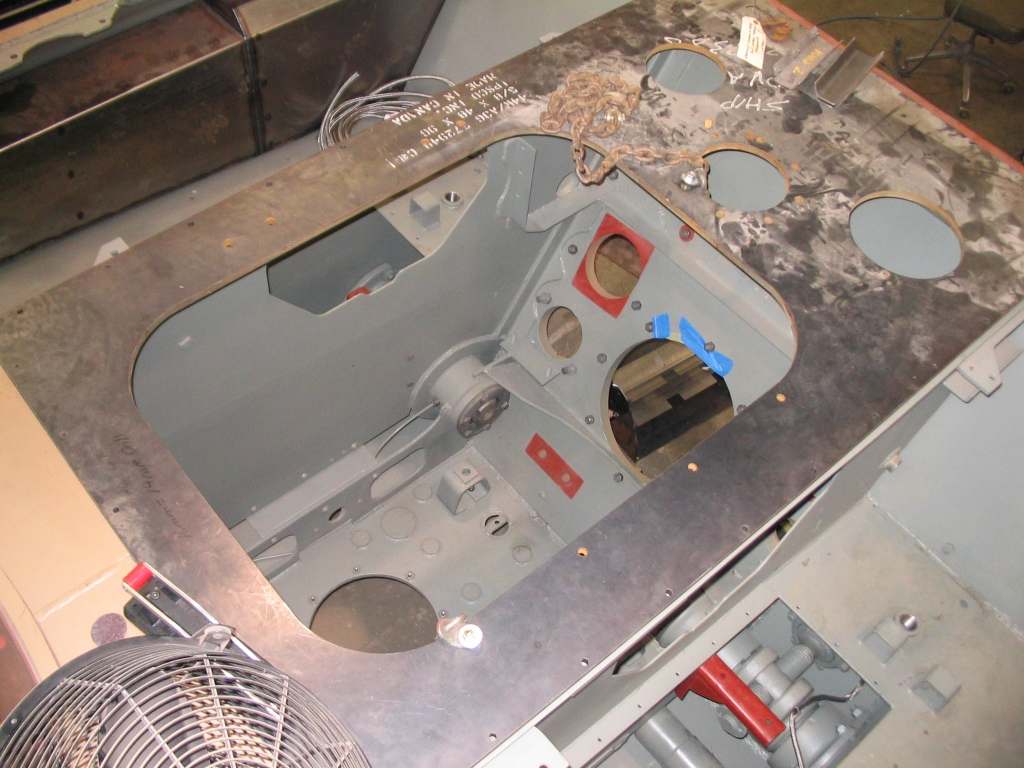

The fact that they have had to make a new engine cover suggests that this vehicle was either a parts donor or quite incomplete when obtained. I note the steel was made in Canada, authenticity has to give way to economics at some point......




11325

Download the big pics by clicking on the small pics...

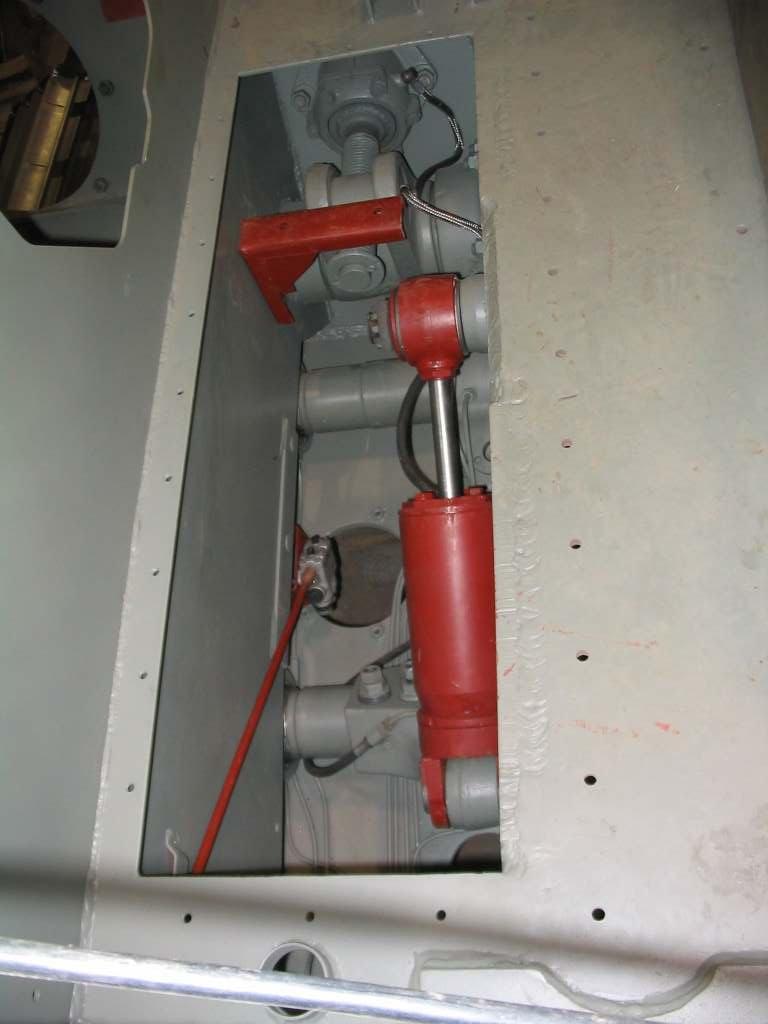

The LHS rear shock absorber (centre) and what I think is the idler tension adjuster (upper most in pic, large screw thread). The braided pipe is from the centralised greasing station.




11326

Download the big pics by clicking on the small pics...

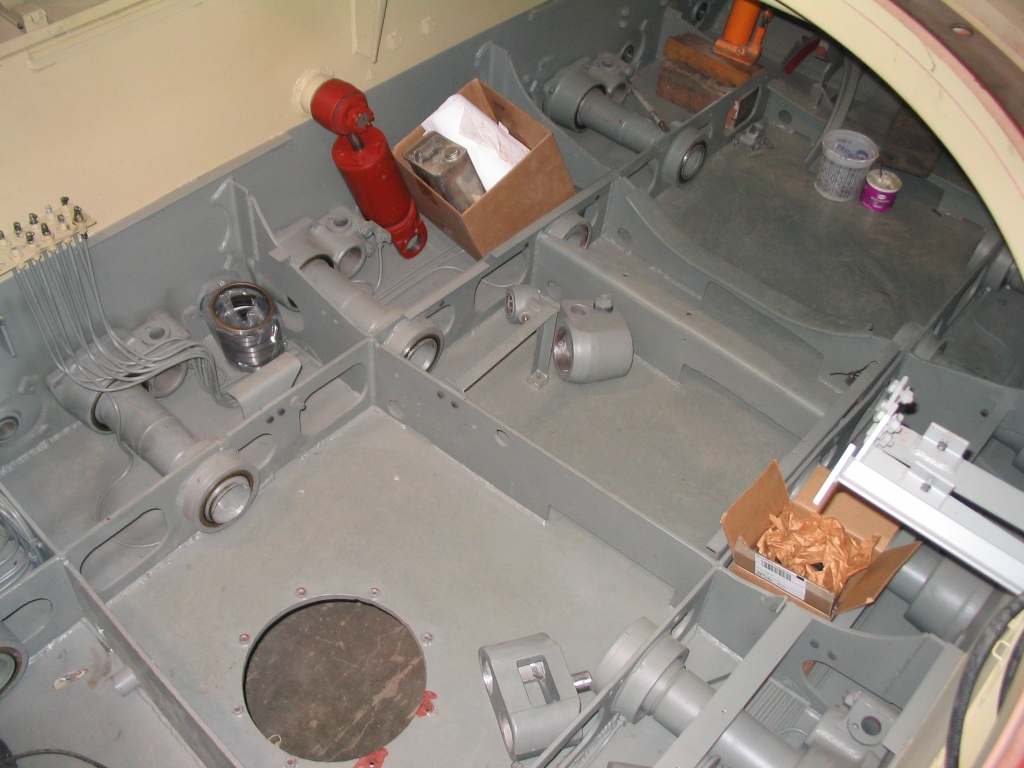

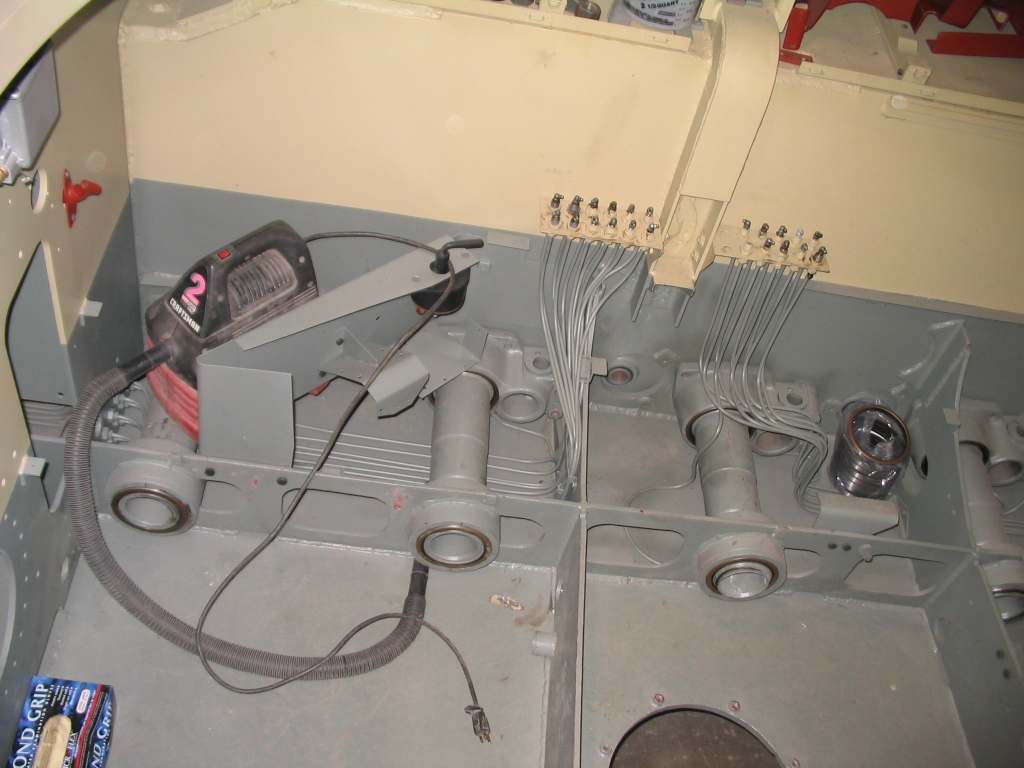

The object lying to the right of the access hole is a torsion bar mount (serves to all ow double lenght torsion bars). Note the central greasing station at LH top of pic - an excellent teutonic idea.




11327

Download the big pics by clicking on the small pics...

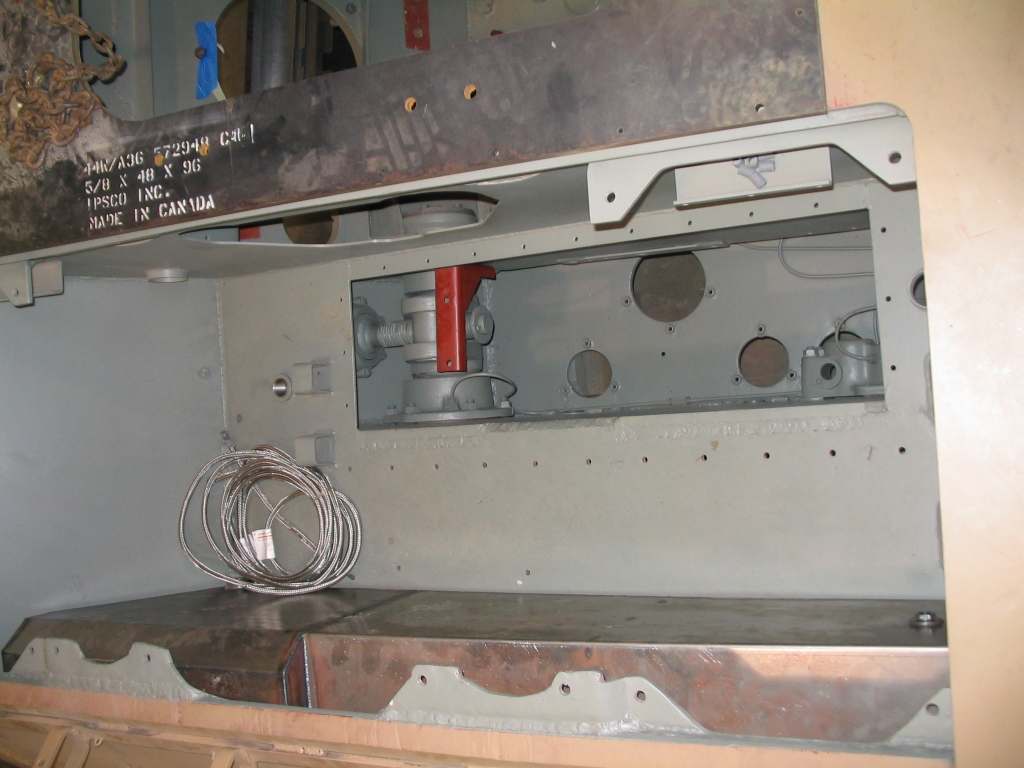

A better vew of the greasing station, I am curious as to why they have used modern pattern greas nipples as I am reasonably sure they should be the WW2 style flat ones?




11328

Download the big pics by clicking on the small pics...

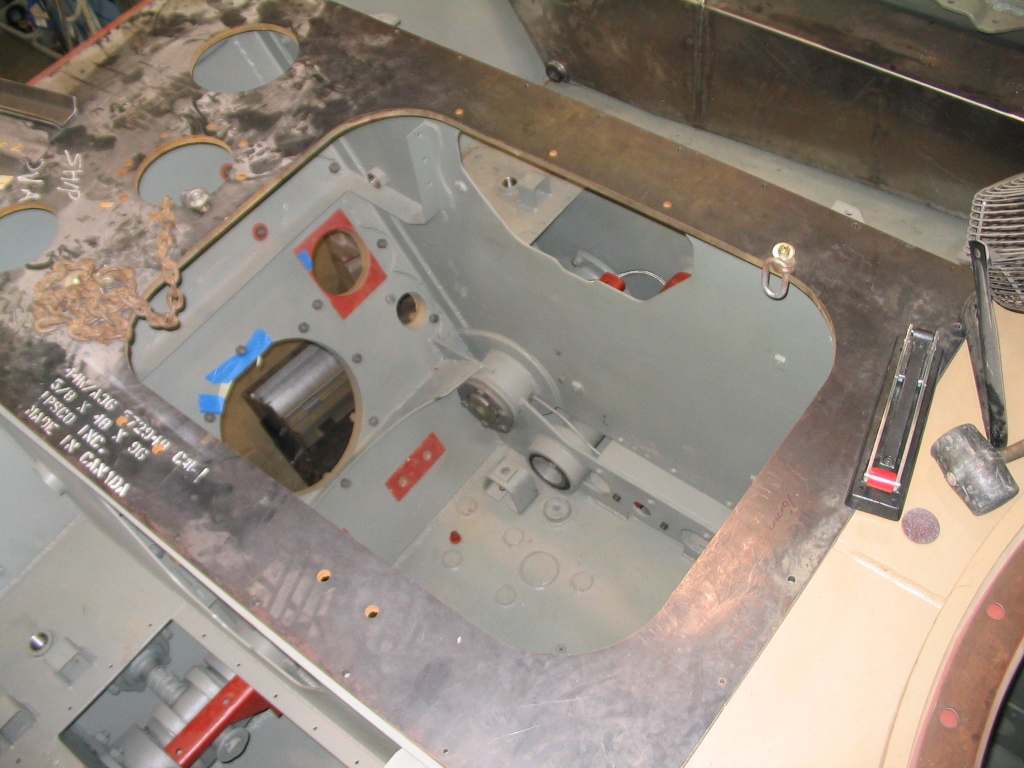

RHS rear bay.




11329

Download the big pics by clicking on the small pics...


Engine bay again.




11330

Download the big pics by clicking on the small pics...


Fighting compartment facing rear and firewall.




11331

Download the big pics by clicking on the small pics...

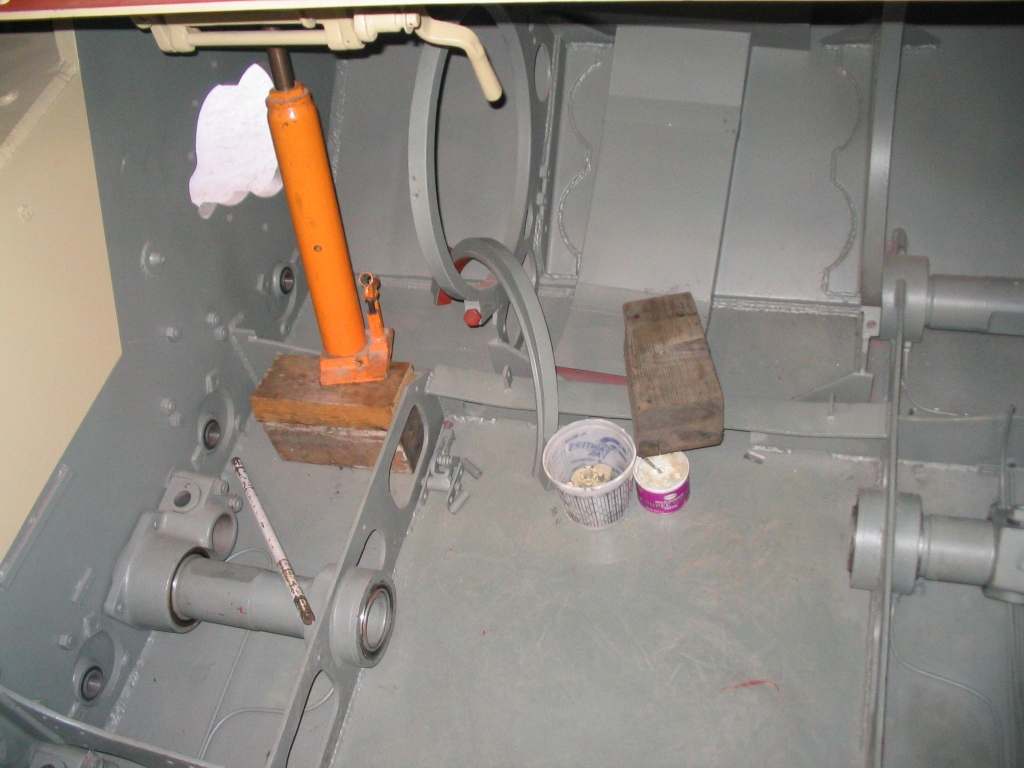

A view of the odd circular transmission mounts. I am glad I am not the one installing it in there.




11332

Download the big pics by clicking on the small pics...

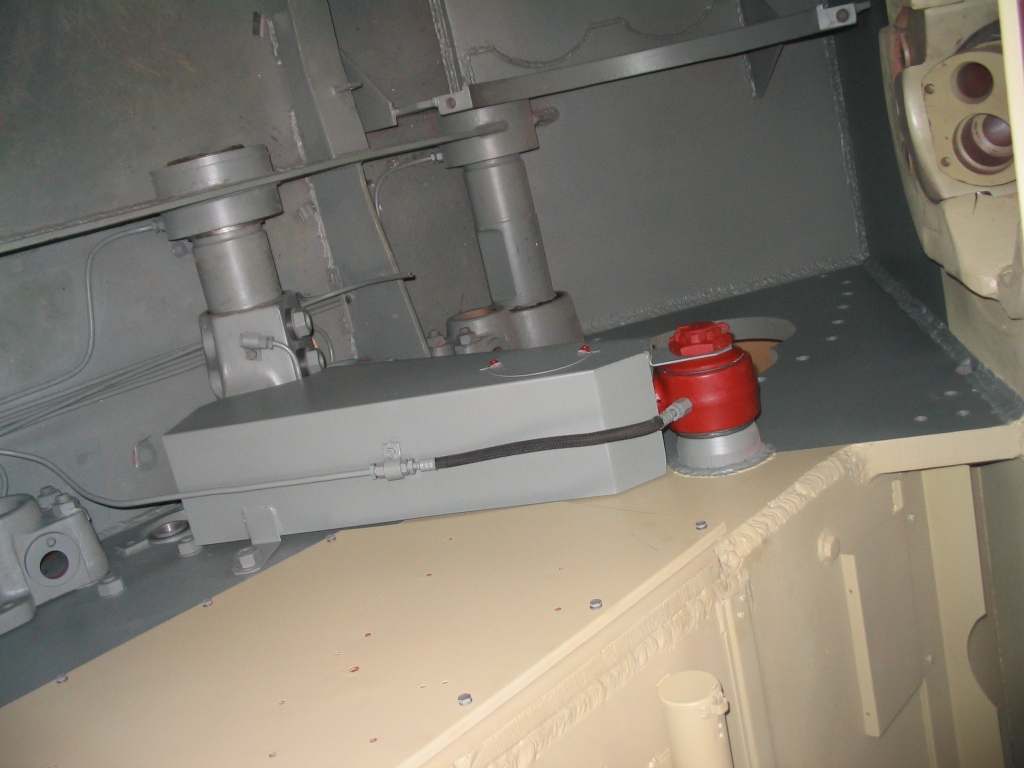

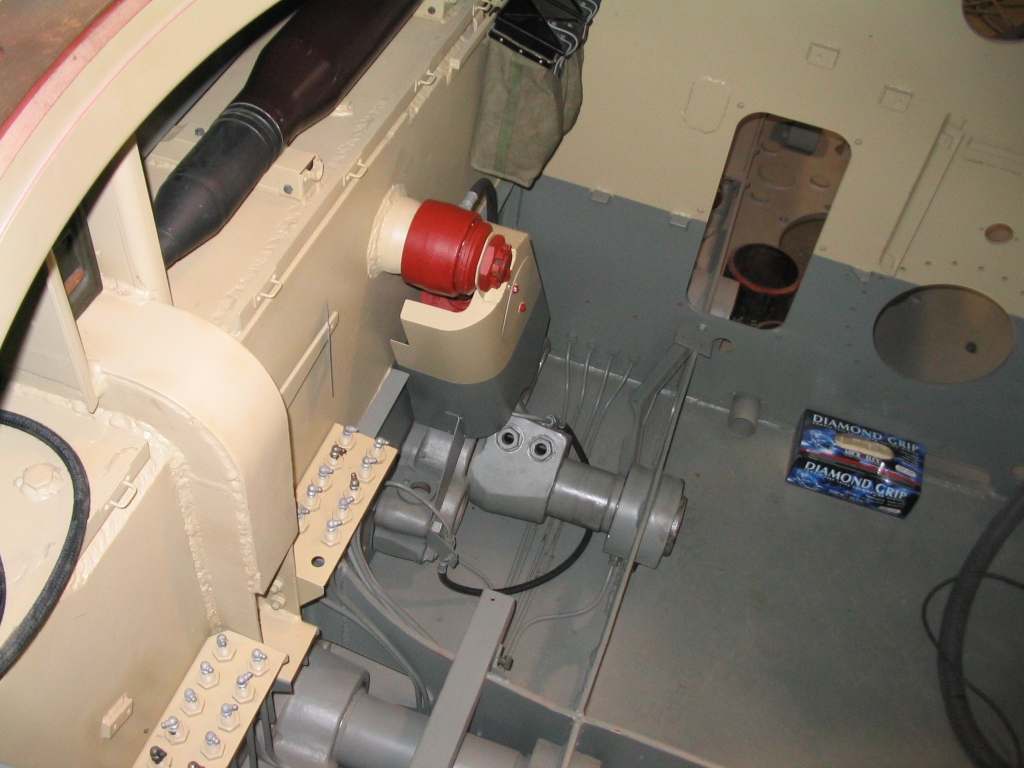

Front RHS shock absorber with it's safety cover and greasing line.




11333

Download the big pics by clicking on the small pics...





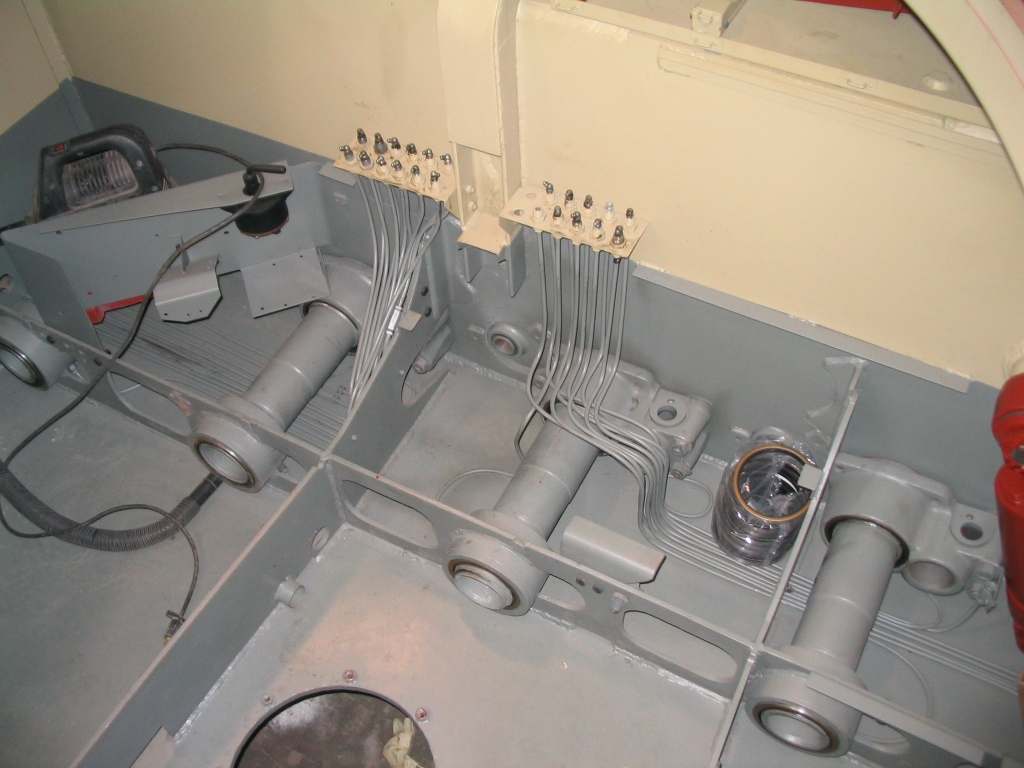

11334

Download the big pics by clicking on the small pics...





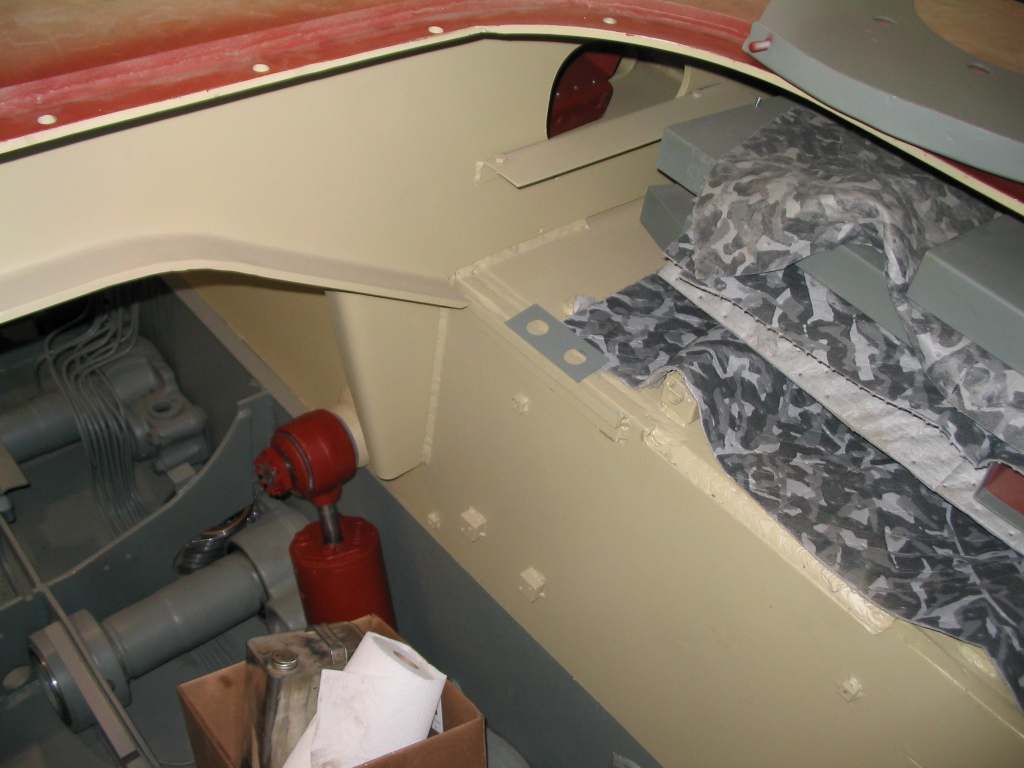

11335

Download the big pics by clicking on the small pics...





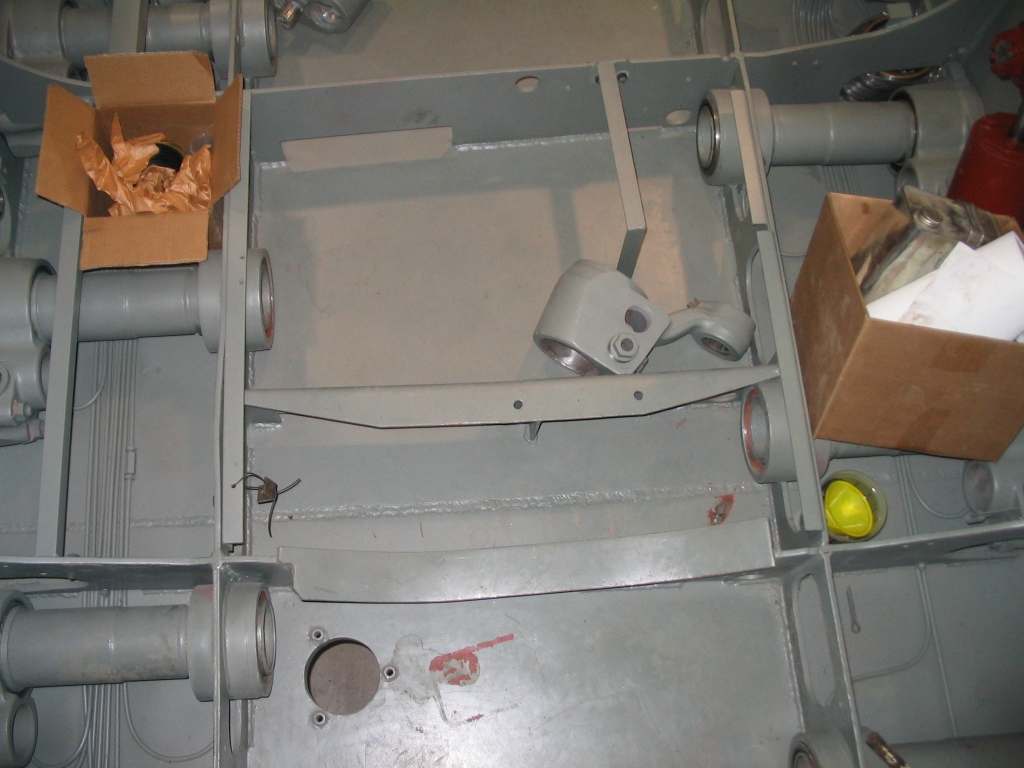

11336

Download the big pics by clicking on the small pics...





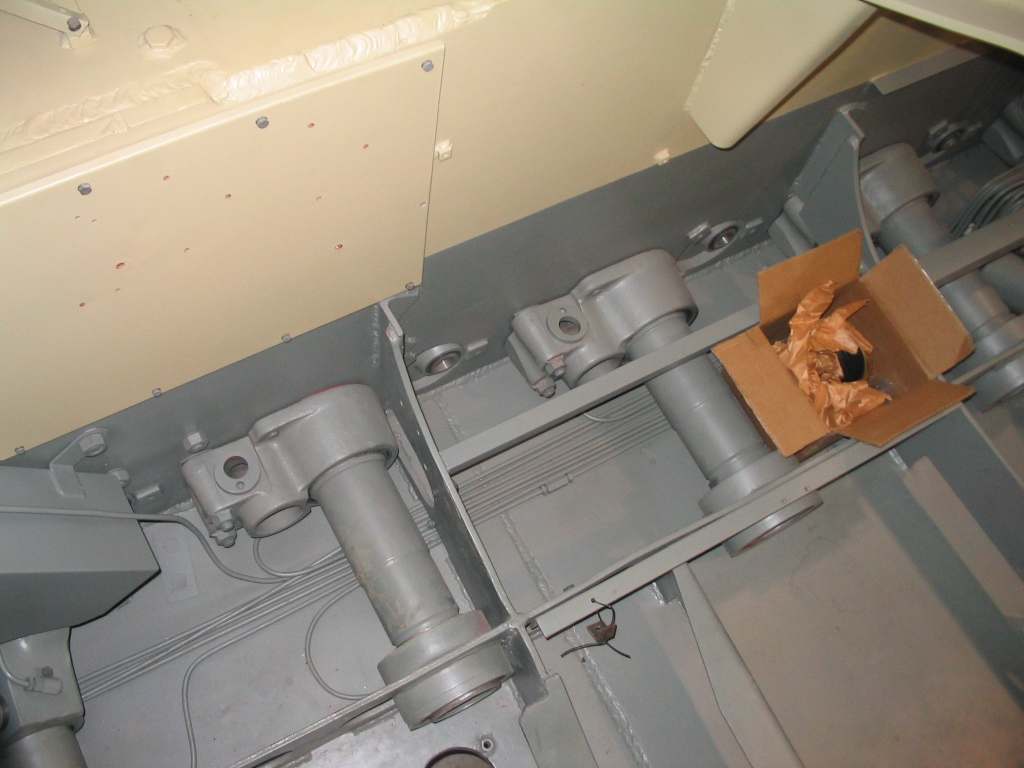

11337

Download the big pics by clicking on the small pics...





11338

Download the big pics by clicking on the small pics...

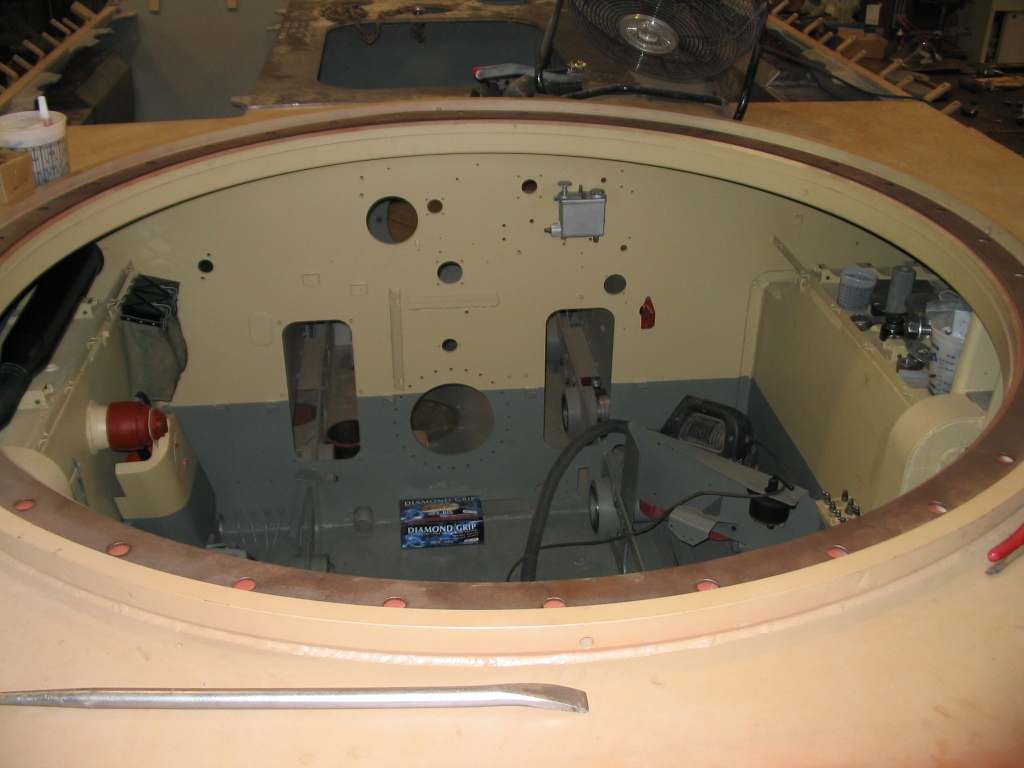

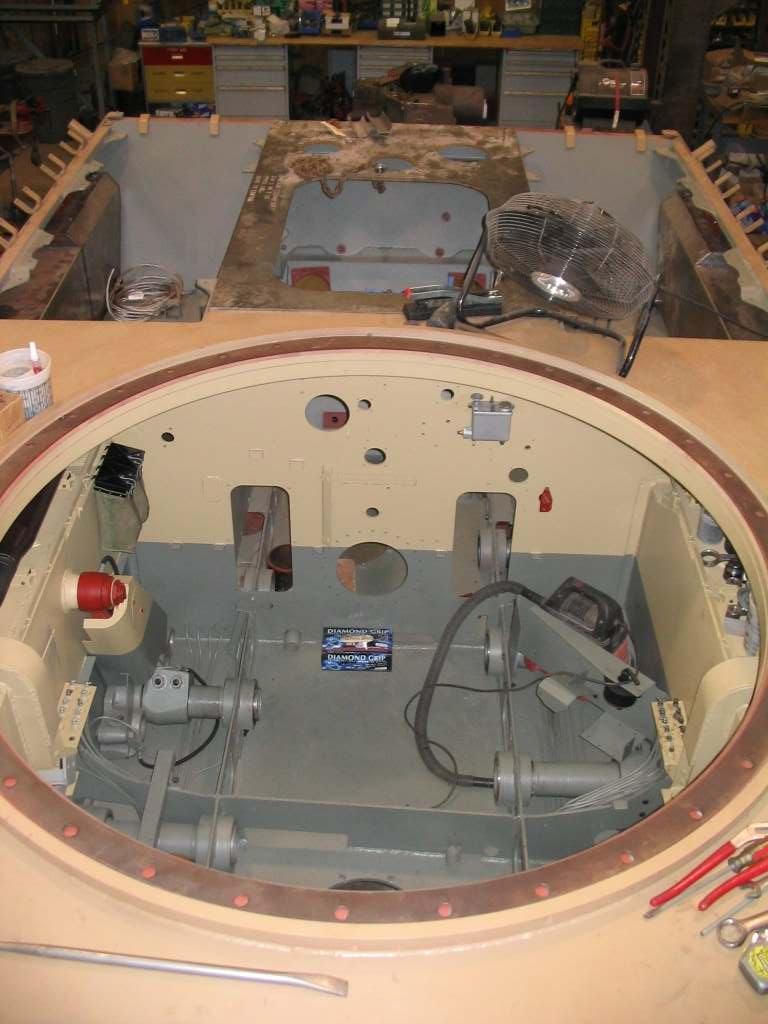

Looking to the rear over the hull roof.




11339

Download the big pics by clicking on the small pics...





11340

Download the big pics by clicking on the small pics...

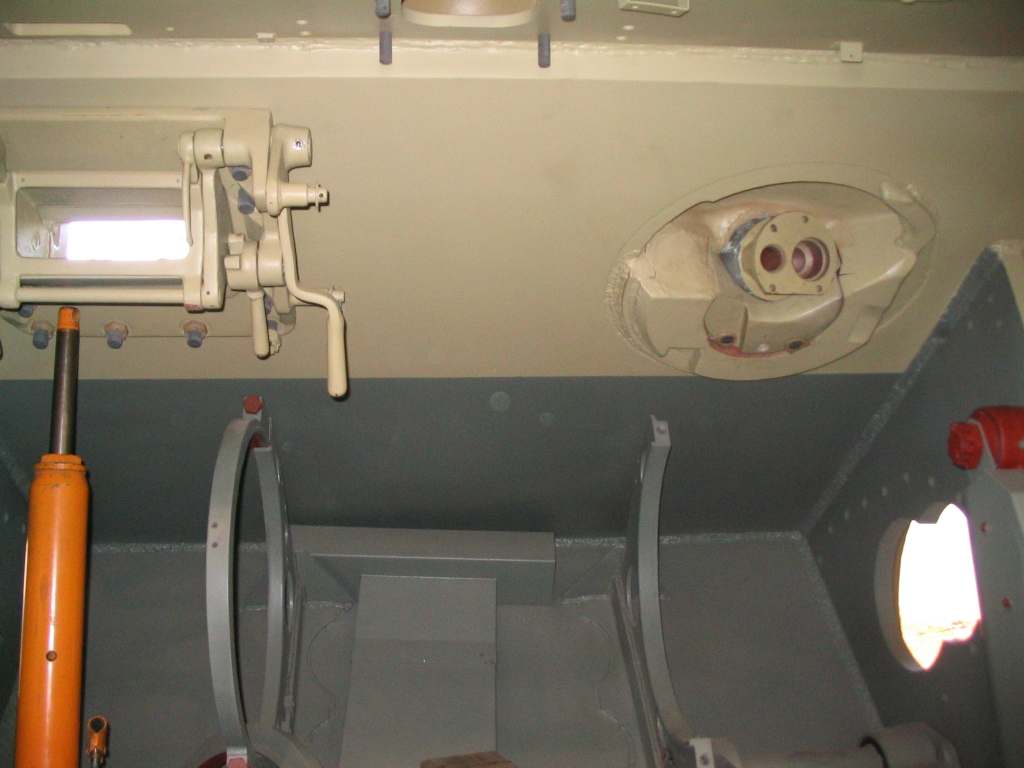

Amazing how roomy tanks are without the mechanicals.




11341

Download the big pics by clicking on the small pics...

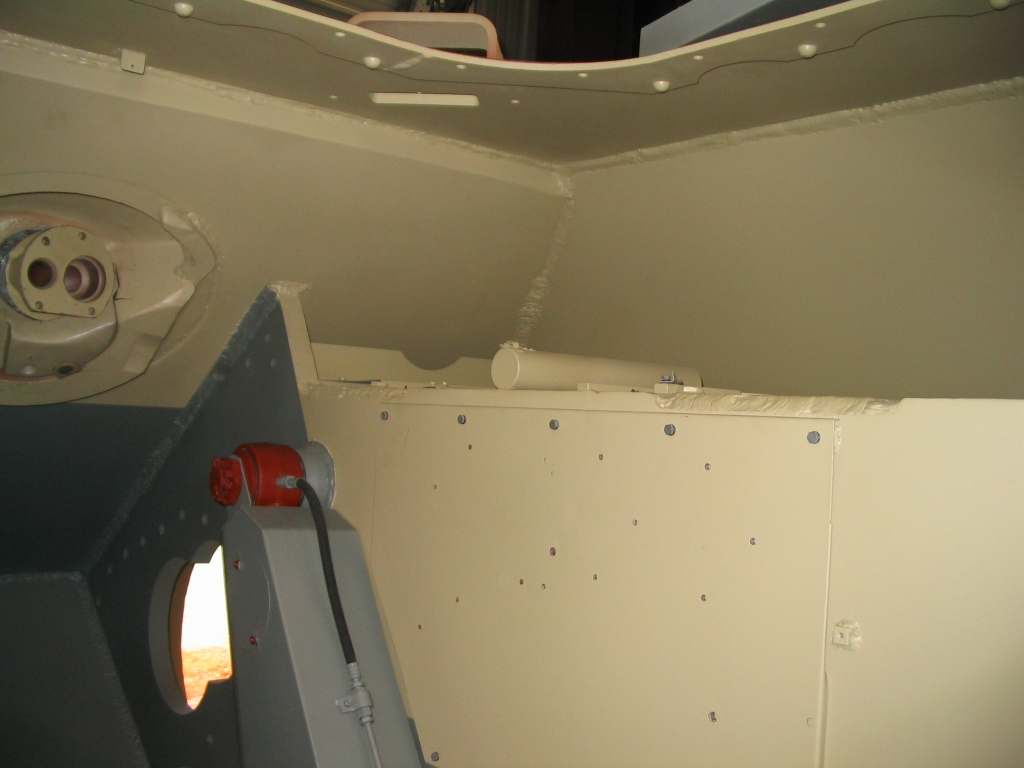

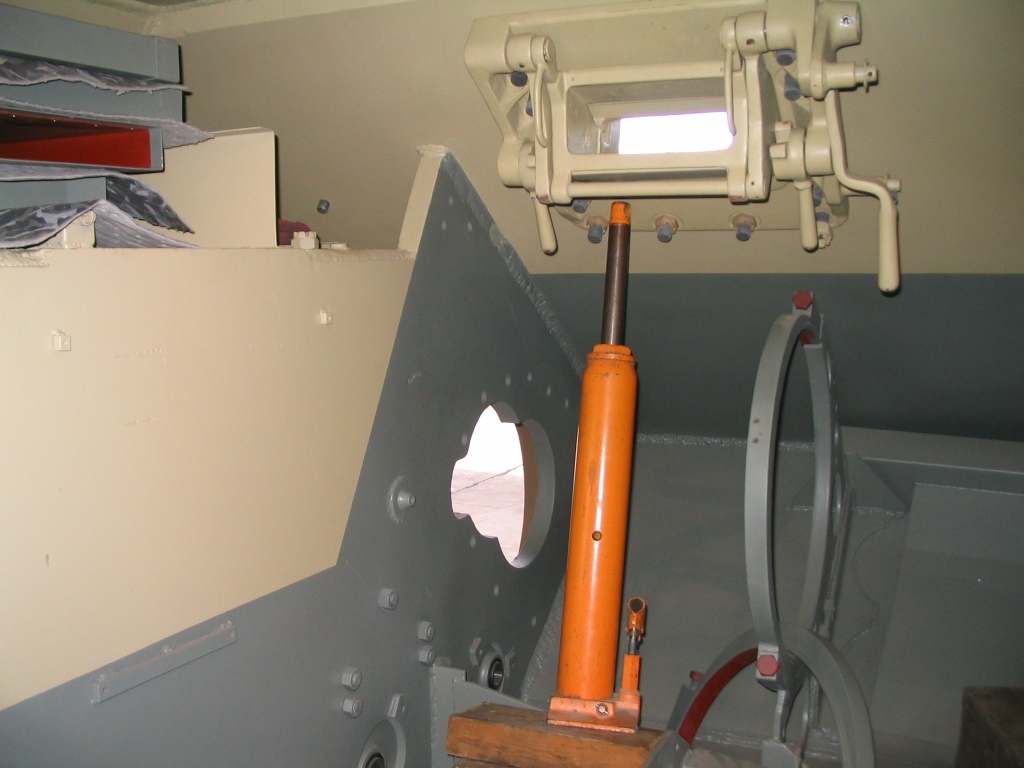

Why the jack? I don't know. I do know that when you pulled the transmission out of an M3 and M3A1 Stuart that you had to jack the hull apart. So perhaps the Panther hull also needs the transmission for rigidity reasons?




11342

Download the big pics by clicking on the small pics...





11343

Download the big pics by clicking on the small pics...

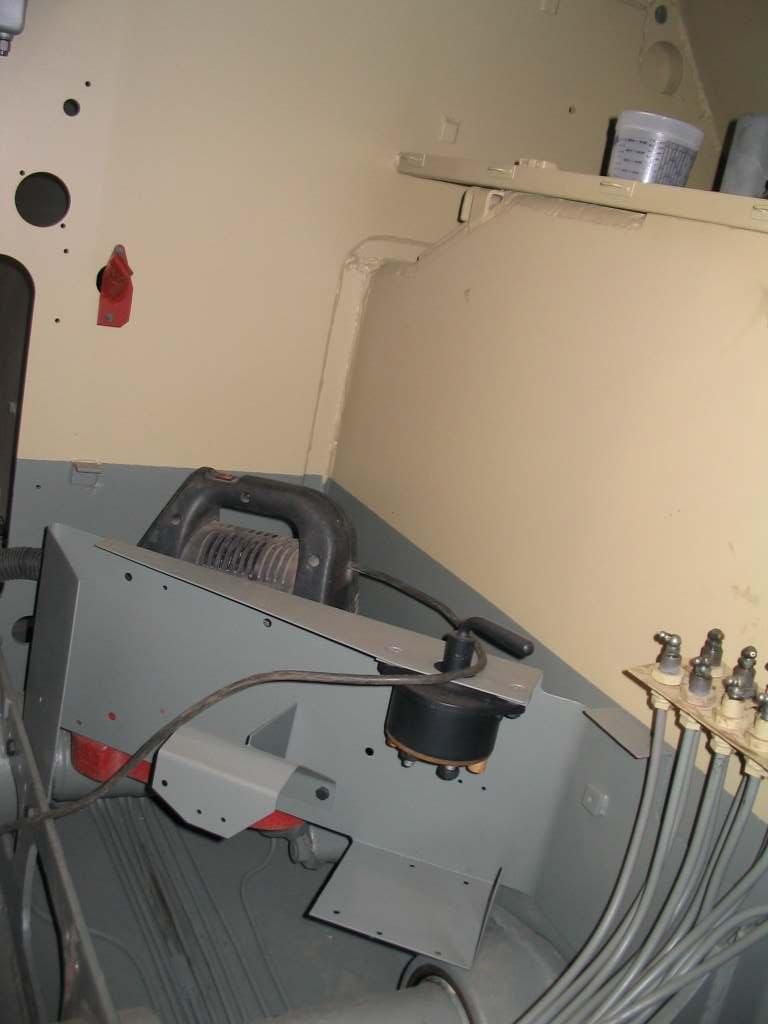

Is the battry cut off switch a modern improvement or did the Germans have them too? (I know from experience that US armour did, but it certainly wasn't of the type in this pic.)




11344

Download the big pics by clicking on the small pics...





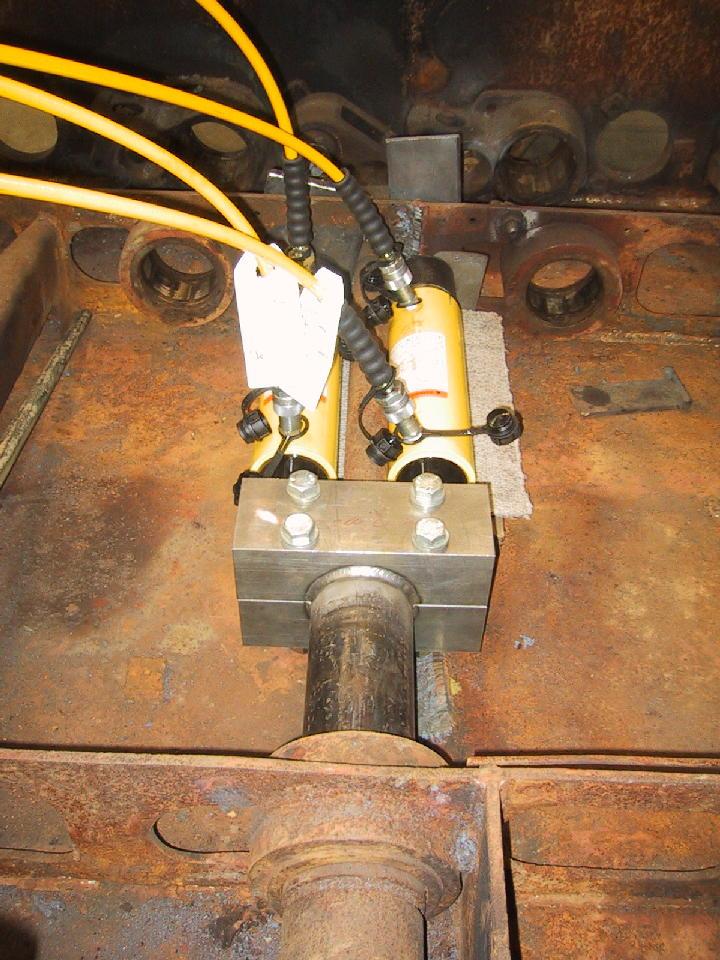

For those who are wondering why the torsion bars have not been installed, here is the reason. Torsion bars are a very good form of suspension, far superior to volute or horizontal volute spring systems as used on WW2 US tanks or leaf springs as used on earlier German vehicles. However, they do use up hull interior space, are heavy and are expensive. They are also particularly sensitive to damage. Even such vehicles as the M113 family of APCs, using modern materials have still had to resort to wrapping the torsion bars with electrical tape in order to protect them. There is a story of how the British occupation forces in Germany at the end of WW2 rounded up the former factory workers at a Panther/Jagdpanther factory and got them to finish construciton of the remaining hulls. A British officer who until that point had found the German workers to be respectfull and dilligient made the mistake of walking across the torsion bars installed in a hull. He very quickly learned that he had just committed the ultimate transgression. Nothing quite compares to being told off by a German and it was an experience he didn't forget.
Even a scratch or rust pit will cause a torsion bar to fail in use.

My thanks to John Moores for supplying the pics. I would like updates for this article from anyone who is granted access and permission to photograph this vehicle as it progresses?
